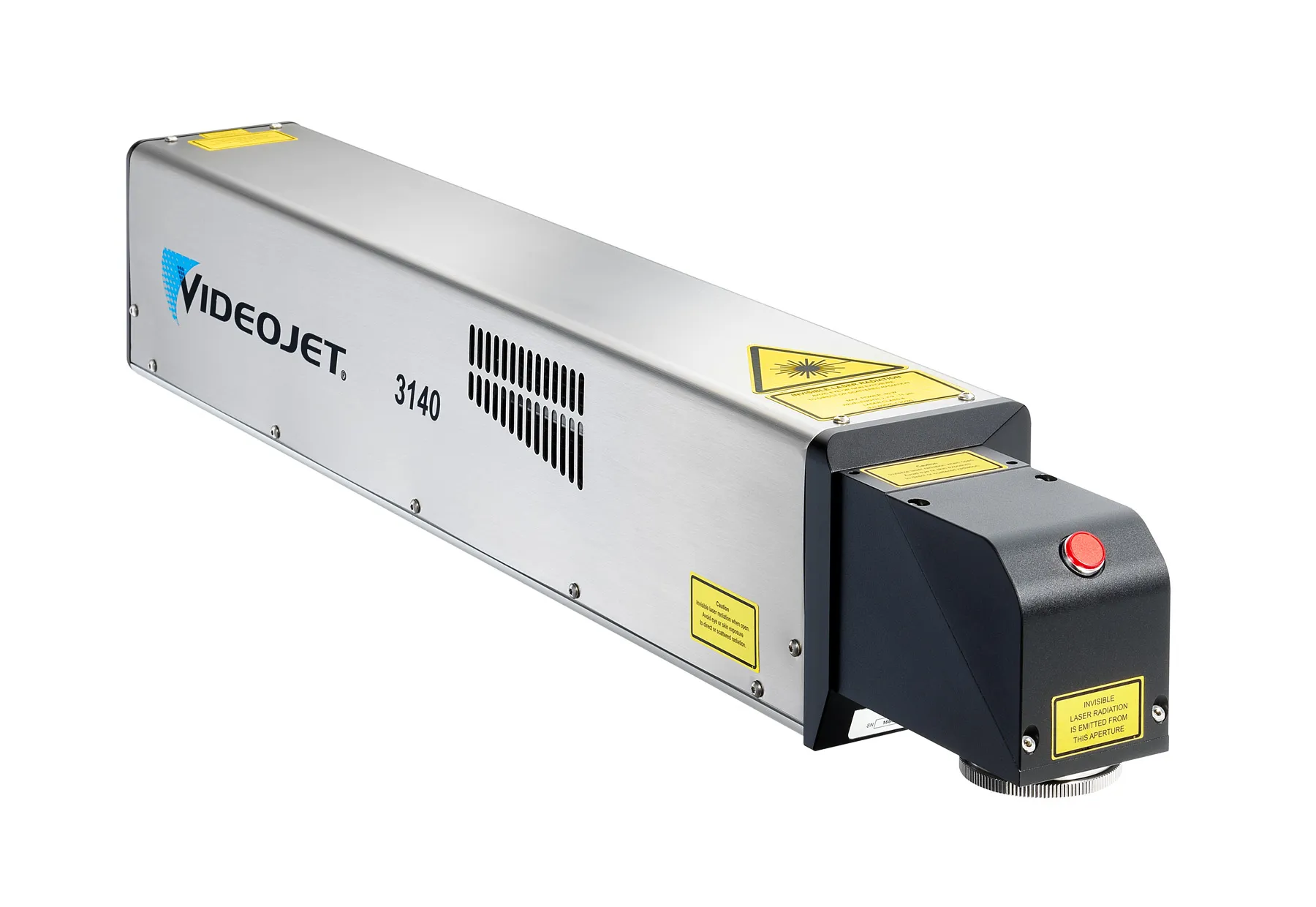

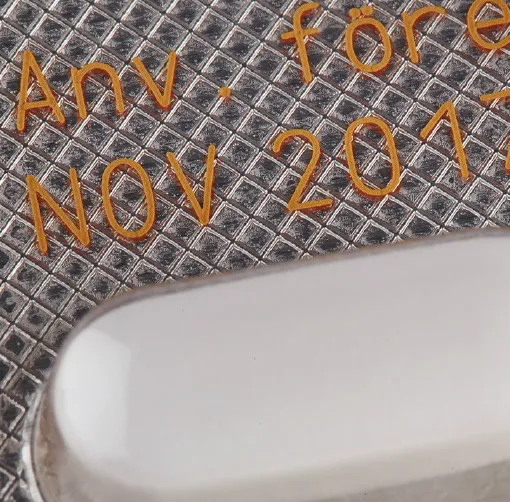

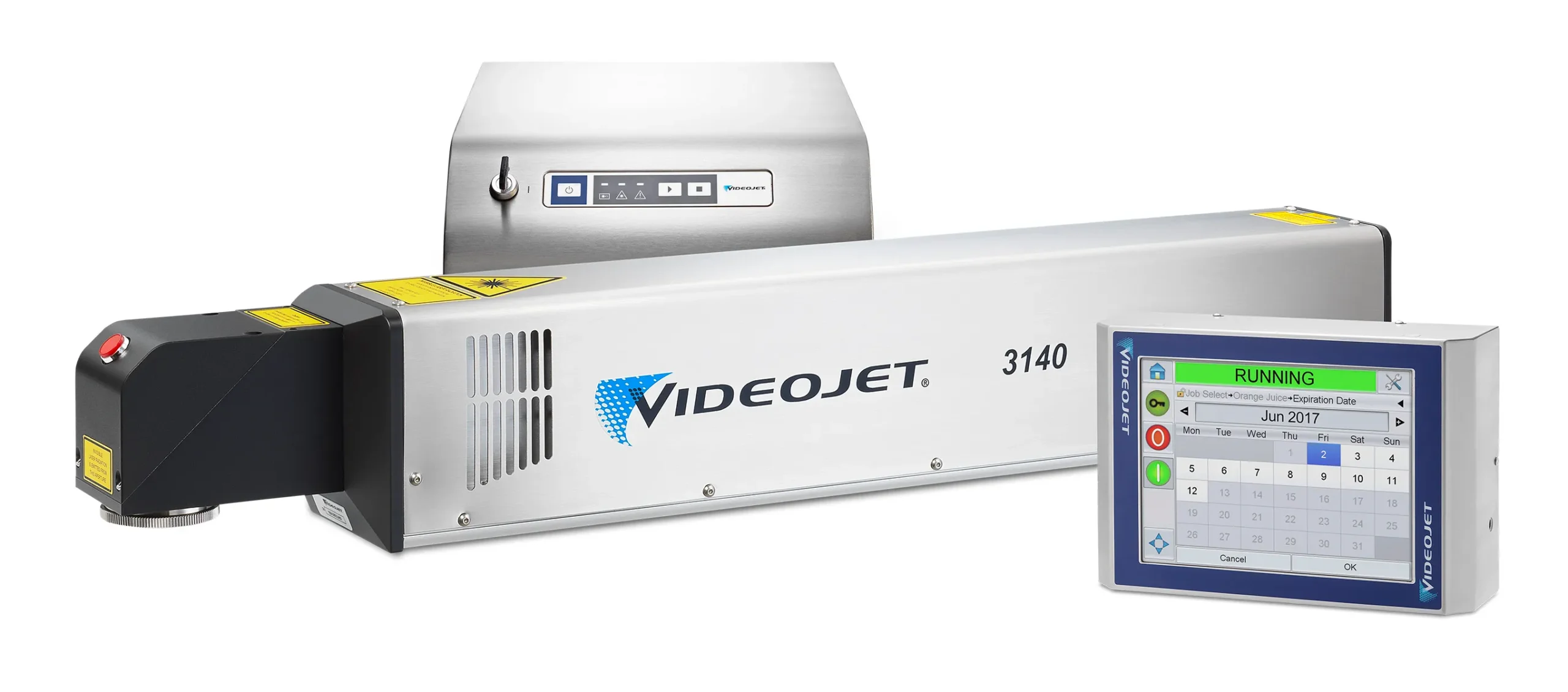

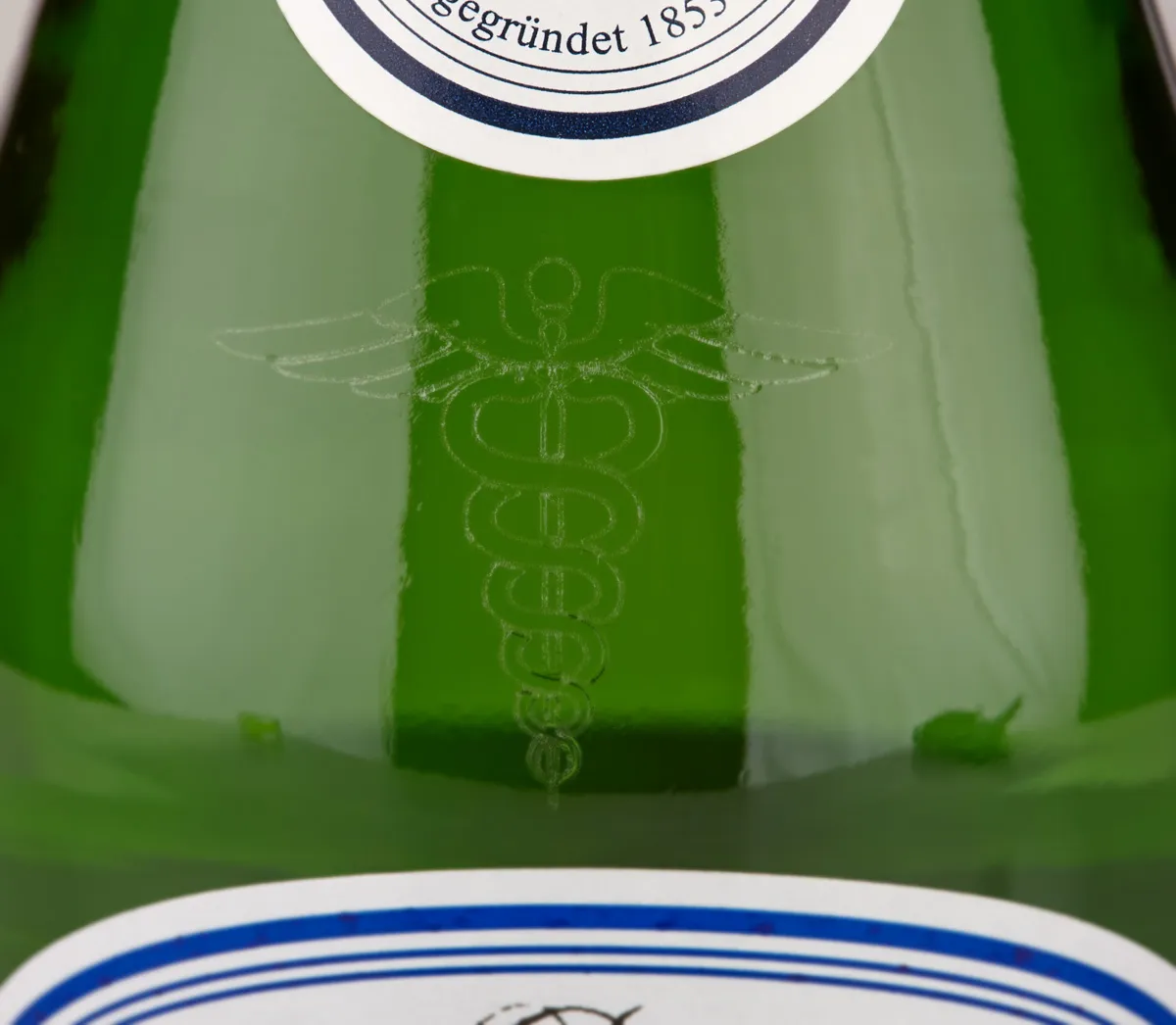

The Videojet 3140 10-Watt CO2 laser marking machine is engineered to offer all of the performance features found in higher wattage Videojet lasers, but with a power source better matched for moderate line speed applications. Ideal for both simple and complex code requirements on a range of substrates including paperboard, glass, painted metal, paper labels, PET and other plastic materials. The 3140 laser printing system offers flexibility to meet a broad range of applications in many food, beverage, cosmetics and pharmaceutical operations.
Contact us for New Equipment Sales:
1300 02 02 04
| Specification | Value |
|---|---|
| Laser Tube | CO2 |
| Maximum Power | 10W |
| Laser Cooling | Air Cooled |
| Maximum Print Speed | 2000 characters/sec |
| Maximum Line Speed | 900 m/min (2,940 ft/min) |
| Environmental Protection | IP54, 65 |
| Beam Output | Steered Beam |
| Laser Source Expected Life | 45,000 hours |
| Laser Wavelength Options | 10.6 μm, 9.3 μm |
| Focal Distance Options | 64 mm (2.50 in) – 400 mm (15.75 in) |
| Maximum Mark Window | 485 x 351 mm (19.09 x 13.81 in) |
| Standard I/O Connectivity | Internal Terminal Connections |
| Standard User Interface | Handheld |
| Optional User Inteface | PC, CLARiTY™ Laser Controller, TCS, Smart Graph Com |
| Umbilical | Detachable, 3 Lengths |
| Plant Air Used | No |
| Certifications/Approvals |
CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA |
“The Videojet lasers have not had a single glitch since they were installed and are working well every day!”
Jose Luis Munoz – Manager, Avicola Velasco (case study)
Up to 2,000 characters/sec.(1)
Up to 15 m/sec. (49ft/sec.)(1)
Approx. 30.8×38.2mm2 to 350.8×294.7mm2
10.6μm and 9.3μm
Standard industrial fonts (Type 1 Windows® TrueType®) and Single line fonts
Machine readable codes (OCR, 2D-matrix, etc.)
Bar codes: BC25, BC25i, BC39, BC128, GS1-128, EAN13, UPC_A, RSS14,
RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omnidirectional, RSS Limited,
RSS Expanded, etc.
Graphics, logos, symbols, etc.
Linear, circular, angular, reverse, rotate
Sequential and batch numbering
Automatic date, layer and time coding; real-time clock
Dot mode enables marking 2D codes faster than traditional grid mode
Sealed CO2 laser, power class 10-Watt
Steered beam with digital high-speed galvanometer scanners
Focal lengths: 64/ 95/ 127/ 190/ 254 mm (2.5/ 3.75/ 5.0/ 7.5/ 10.0 inches); 63.5/ 85/ 100/ 150/ 200/ 300/ 351/ 400 mm (2.50/ 3.35/ 3.94/ 5.9/ 7.87/ 11.8/ 13.8/ 15.75 inches)
Handheld controller
PC software
TCS Touch Control Software
CLARiTYTM Laser Controller
Smart Graph Com
Arabic, Bulgarian, Czech, Danish, English, German, Greek, Finnish, French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Simplified Chinese, Slovak, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Vietnamese; interface dependent. Additional languages available with Smart Graph software.
(1) Maximum marking and line speed is application dependent
(2) With optional CLARiTYTM Laser Controller
Ethernet, TCP/IP and RS232 optional
Inputs for encoders and product detector triggers
16 inputs / 11 outputs for start/stop signals, machine/operator interlocks, alarm outputs; in addition to the safety circuits
Customer-specific solution available
Direct integration into complex production lines via scripting interface
Flexible beam delivery options (beam extension unit/ beam turning unit)
Detachable umbilical for simple integration; available in 3 lengths
100-240 VAC (autorange), ~50/60Hz, 1PH, 0.40KW
Air cooled
Temperature 40-105° F (5-40° C)
Humidity 10%-90%, non-condensing
Supply unit: standard IP54, optional IP65
Marking Unit: IP54, optional IP65
Optional safety module provides Performance Level d (PFL-d) in accordance
to EN 13849-1
IEC/EN 60825-1:2014
Supply unit: IP54/IP65 25.4lbs. (11.5kg)
Marking unit: IP54 28.7lbs. (13kg); IP65 30.9lbs. (14kg)
CE, TÜV/NRTL, FCC
Compliance (no certification required): ROHS, CDRH/FDA
