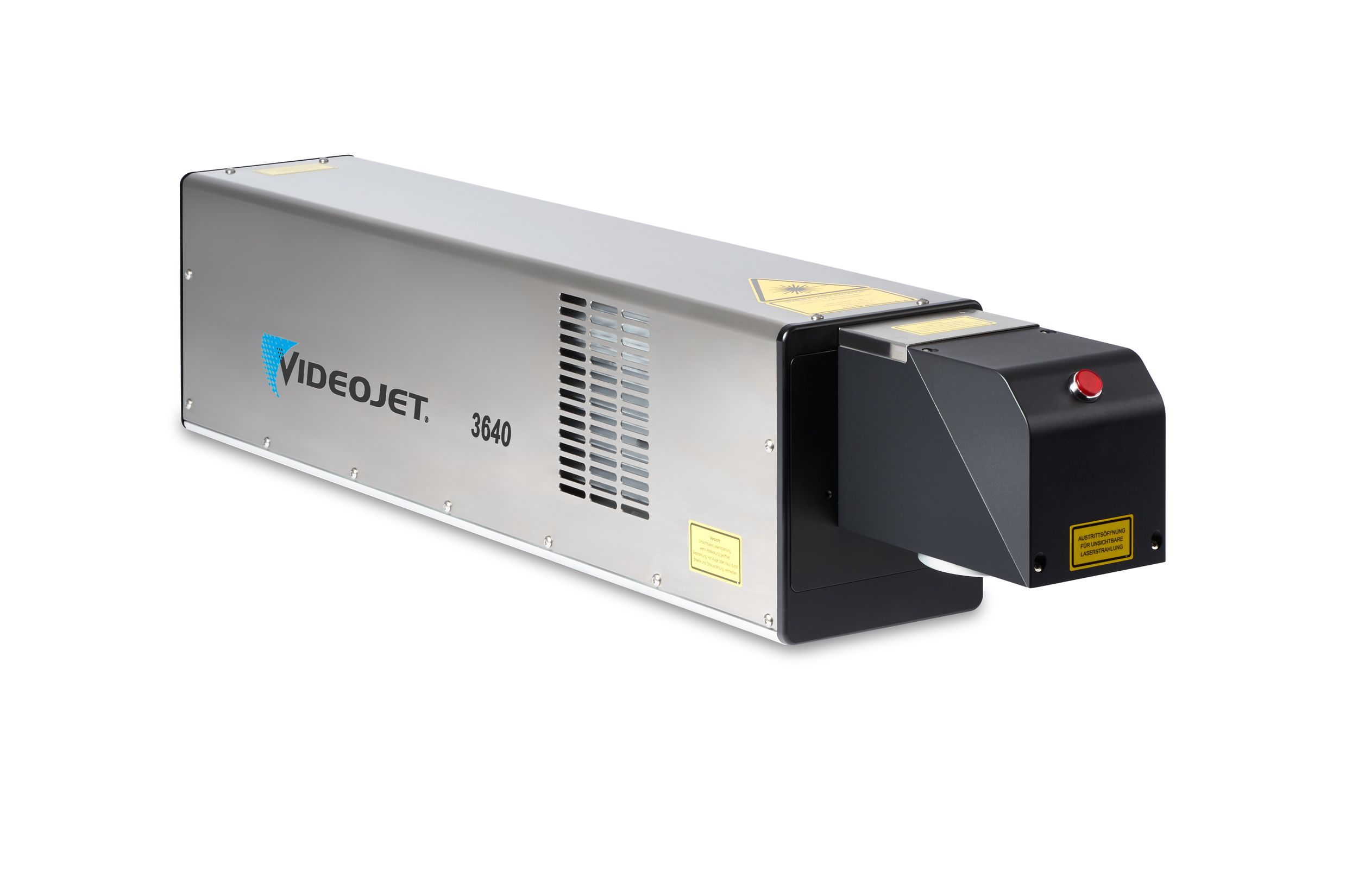

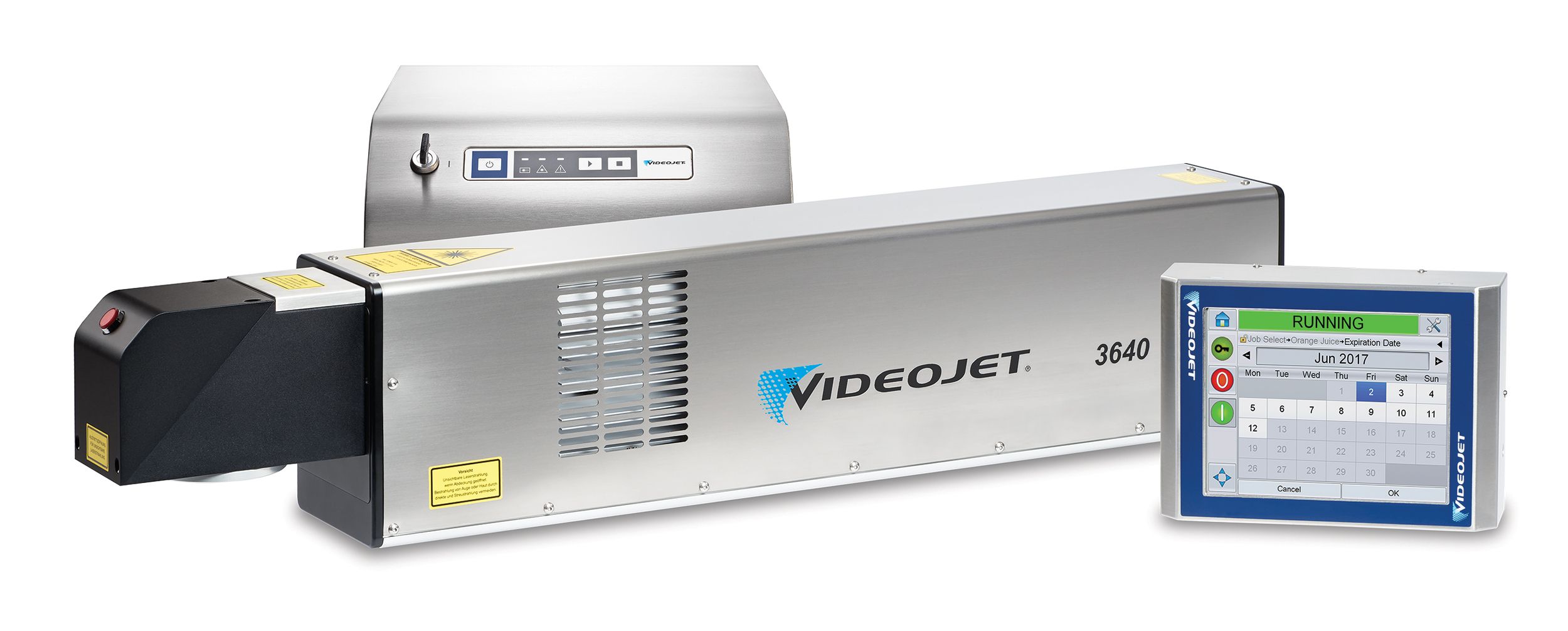

The 3640 60-Watt CO2 laser marking system is engineered to help address high-speed and high-volume applications in the pharmaceutical, tobacco and beverage markets. It is a compact high-speed laser, and has been designed to process complex codes at high speeds, with the industry’s widest mark field.
Contact us for New Equipment Sales:
1300 02 02 04
| Specification | Value |
|---|---|
| Laser Tube | CO2 |
| Maximum Power | 60W |
| Laser Cooling | Air cooled |
| Maximum Print Speed | 2100 characters/sec |
| Maximum Line Speed | 15 m/sec (49 ft/sec) |
| Environmental Protection | IP54, IP65 |
| Beam Output | Steered Beam |
| Laser Source Expected Life | 45,000 hours |
| Laser Wavelength Options | 10.6 μm, 10.2 μm, 9.3 μm |
| Focal Distance Options | 64 mm (2.50 in) – 600 mm (23.62 in) |
| Maximum Mark Window | 601 x 440 mm (23.66 x 17.32 in) |
| Standard I/O Connectivity | Internal Terminal Connections |
| Standard User Interface | Handheld |
| Optional User Inteface | PC, CLARiTYTM Laser Controller, TCS |
| Umbilical | Detachable , 3 lengths |
| Plant Air Used | No |
| Certifications/Approvals | CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA |
Improved line flexibility allowed for rapid implementation of changes to carton labeling. Eliminating labels achieved significant cost savings.
Mike Wilcox – Senior Project Manager, Ascensia Diabetes (case study)
The Videojet lasers have not had a single glitch since they were installed and are working well every day!
Mr. Jose Luis Munoz – Manager, Avicola Velasco (case study)
From an operator’s point of view, the Videojet lasers are far easier to work with.
Barry Murray – Operator, Diageo (case study)
Up to 2,100 characters/sec.(1)
Up to 15m/sec. (49ft/sec.(1)
Approx. 30.8 x 38.2mm2 to 601.0 x 439.8mm2
10.6μm, 10.2μm and 9.3μm
Standard industrial fonts (Type 1 Windows® TrueType®) and Single line fonts
Machine readable codes (OCR, 2D-matrix, etc.)
Bar codes: BC25, BC25i, BC39, BC128, GS1-128, EAN13, UPC_A, RSS14,
RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omnidirectional, RSS Limited,
RSS Expanded, etc.
Graphics, logos, symbols, etc.
Linear, circular, angular, reverse, rotate
Sequential and batch numbering
Automatic date, layer and time coding; real-time clock
Dot mode enables marking 2D codes faster than traditional grid mode
Sealed CO2 laser, power class 60-Watt
Steered beam with digital high-speed galvanometer scanners
Focal lengths: 64/ 95/ 127/ 190/ 254 mm (2.5/ 3.75/ 5.0/ 7.5/ 10.0 inches);
63.5/ 85/ 100/ 150/ 200/ 300/ 351/ 400 mm (2.50/ 3.35/ 3.94/ 5.9/ 7.87/ 11.8/
13.8/ 15.75 inches); 100/ 150/ 200/ 300/ 351 mm (3.9/ 5.9/ 7.9/ 11.8/ 13.8 inches);
400/ 500/ 600 mm (15.75/ 19.68/ 23.62 inches)
Handheld controller
PC software
TCS Touch Control Software
CLARiTYTM Laser Controller
Smart Graph Com
Arabic, Bulgarian, Czech, Danish, English, German, Greek, Finnish, French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Simplified Chinese, Slovak, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Vietnamese; interface dependent. Additional languages available with Smart Graph software.
(1) Maximum marking and line speed is application dependent
(2) With optional CLARiTYTM Laser Controller
Ethernet, TCP/IP and RS232 optional
Inputs for encoders and product detector triggers
16 inputs / 11 outputs for start/stop signals, machine/operator interlocks, alarm outputs;
in addition to the safety circuits
Customer-specific solutions available
Direct integration into complex production lines via scripting interface
Flexible beam delivery options (beam extension unit/ beam turning unit)
Detachable umbilical for simple integration; available in 3 lengths
100-240 VAC (autorange), ~50/60Hz, 1PH, 1.15kW
Air cooled
Temperature 40-105° F (5-40° C)
Humidity 10%-90%, non-condensing
Supply Unit: IP54, optional IP65
Marking Unit: IP54, optional IP65
Optional safety module provides Performance Level d (PFL-d) in accordance
to EN 13849-1
IEC/EN 60825-1:2014
Supply unit: IP54/IP65 25.4lbs. (11.5kg)
Marking unit: IP54 58.4 lbs. (26.5kg); IP65 59.5lbs. (27kg)
CE, TÜV/NRTL, FCC
Compliance (no certification required): ROHS, CDRH/FDA
