| Specification | Value |
|---|---|
| Printheads | 1 |
| Inks | Dye Based |
| Maximum Lines of Print | 5 |
| Maximum Line Speed (1) | 334 m/min (1,097 ft/min) |
| Environmental Protection | IP55, IP66 |
| Umbilical Length | 3m (9.8 ft) optional 6m (19.6 ft) |
| Message Storage Capability | More than 250 |
| Smart CartridgeTM | Included |
| Plug and Play Printhead Modules | Included |
| USB | Included |
| Communications | Ethernet LAN and RS-232 Serial (requires RS232 connector kit) |
| Positive Air / CleanFlowTM | Included |
| Expanded I/O Ports and Control | # |
| Display (User Interface) | SIMPLICiTYTM based 10.4 inch color touchscreen |
Can print 1 to 5 lines of print at speeds of up to 1,097fpm (334mpm) (10 characters per inch, single line of print)
Single-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9×12, 10×16, 16×24, 25×34
Twin-line: 4×5, 5×5, 4×7, 5×7, 7×9, 9×12, 10×16
Tri-line: 4×5, 5×5, 4×7, 5×7, 7×9
Quad-line: 4×5, 5×5, 4×7, 5×7
Five-line: 5×5
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;
Code 39; Interleaved 2 of 5; GS1
10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24, 12×26, 26×26, 8×32, 32×32, 12×36, 16×36, 16×48
21×21, 25×25, 29×29, 33×33
Error correction mode L, M, Q or H
Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font
Optimal: 0.472” (12mm)
Range: 0.197” (5mm) to 0.591” (15mm)
Printhead throw distance may be increased to produce taller codes. However, characters will be printed at a lower drop resolution

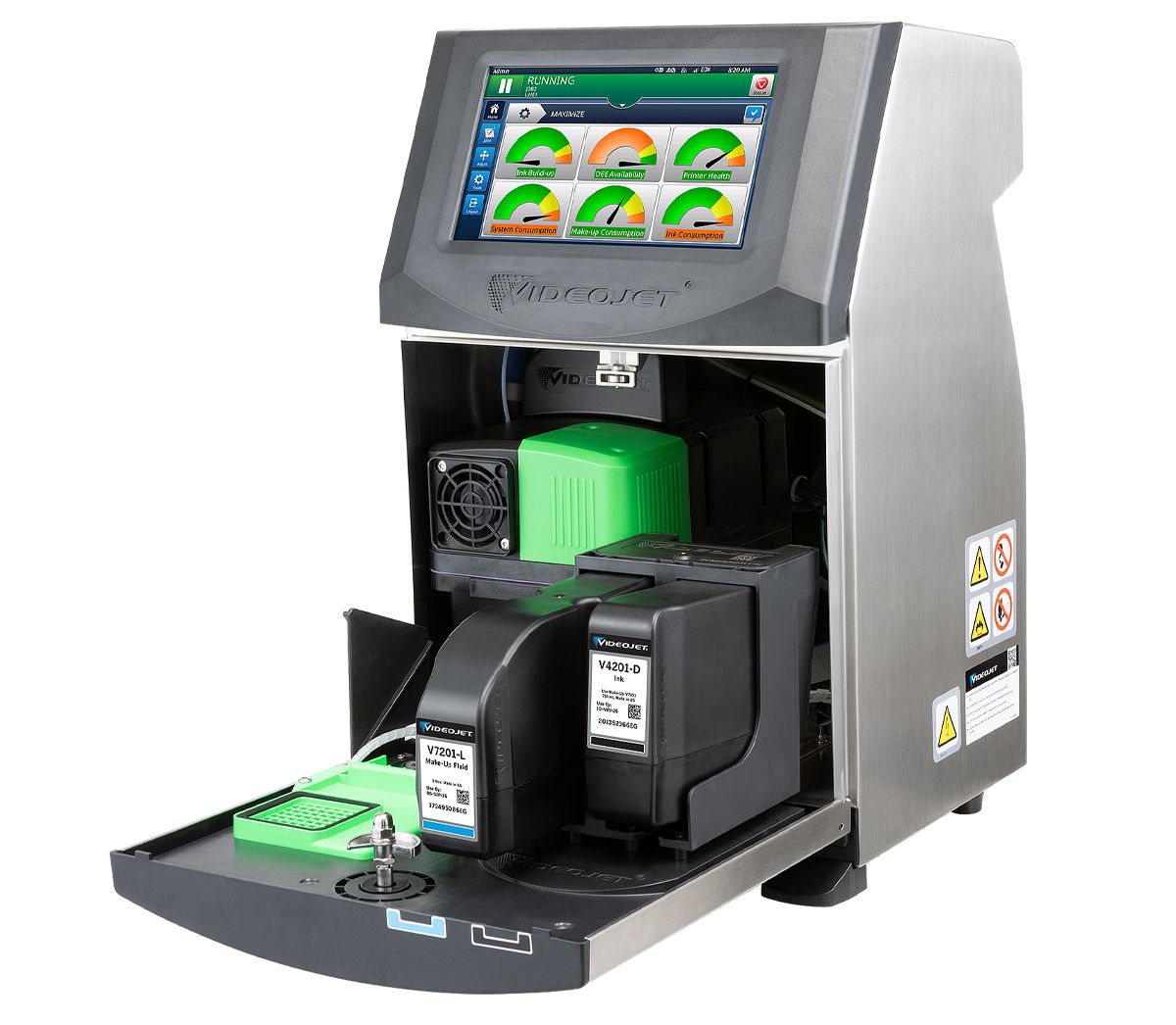

10.4” 16:9 high-response TFT-LCD touch screen
WYSIWYG touch to edit message editing
Can be created via optional CLARiSOFTTM software*
Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic, Japanese/Kanji, Hebrew, Korean, East European and European/American
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese

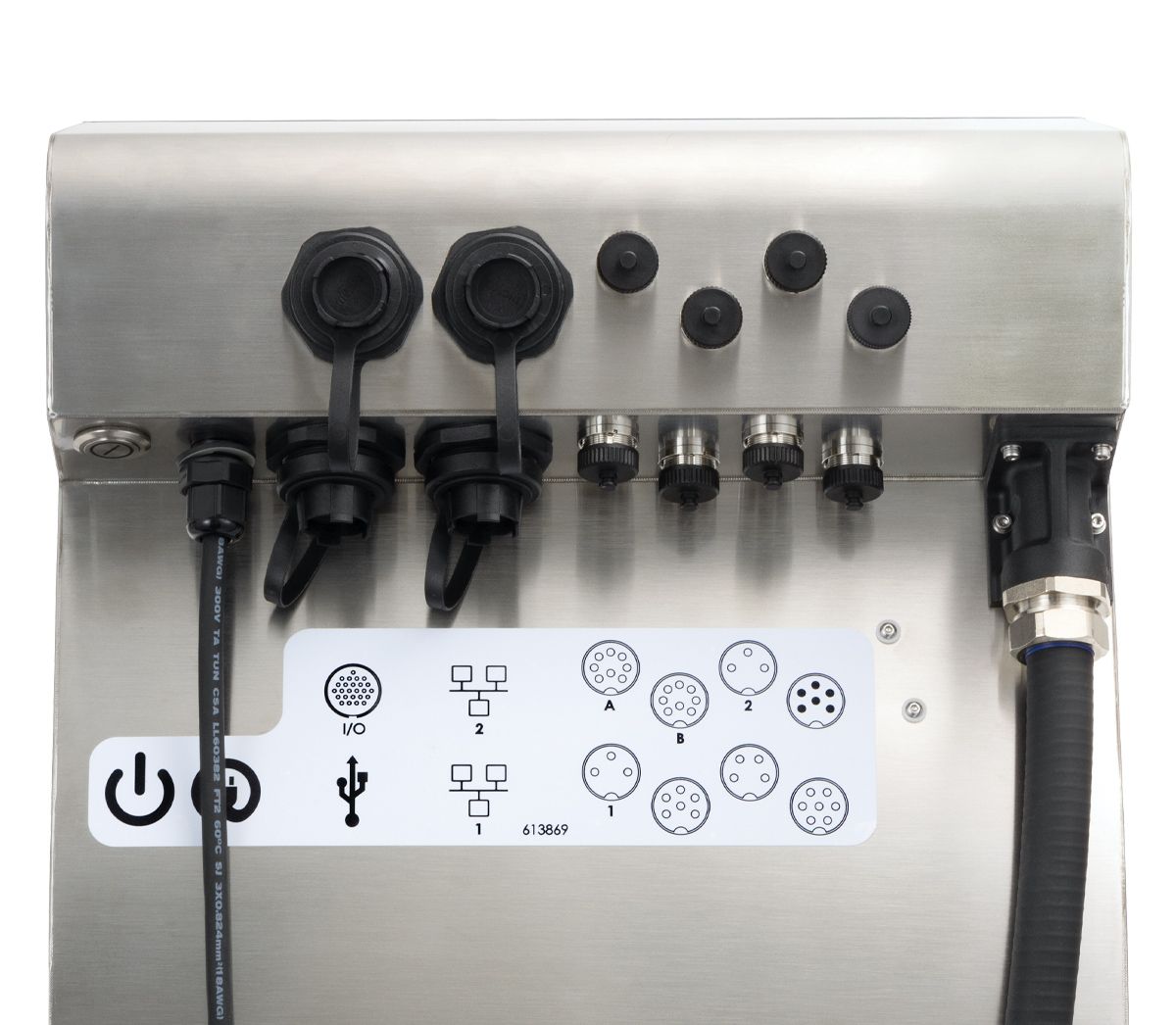

Product detect input; Encoder input; Beacon (Alarm light) output; Relay output;
USB 2.0 (2x); Ethernet LANTM; Built-in Wi-Fi
More than 250 complex messages
IP55 standard, no plant air required, stainless steel cabinet IP66 protected electronics optional
CleanFlowTM including positive air, no plant air required (optional)

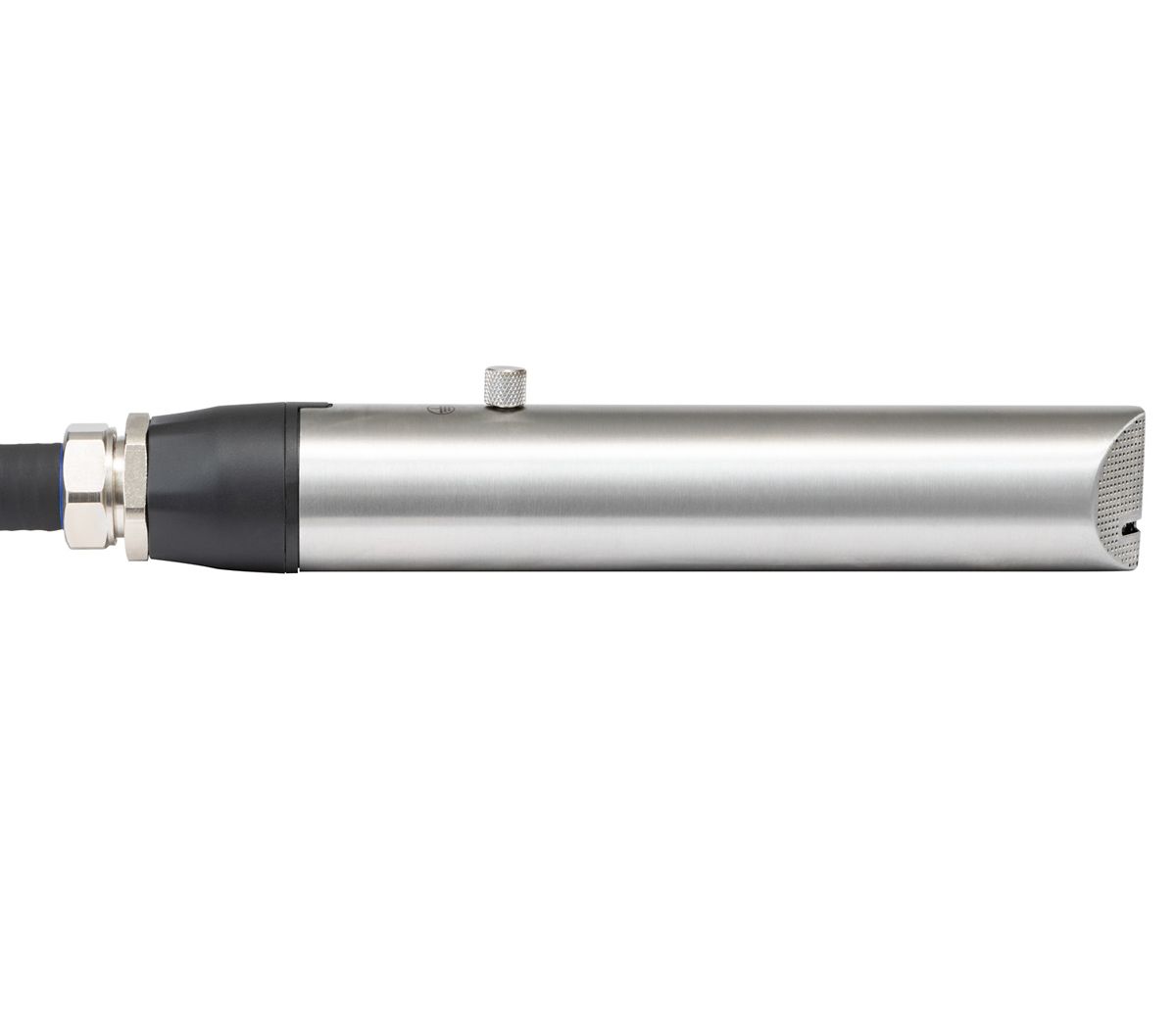

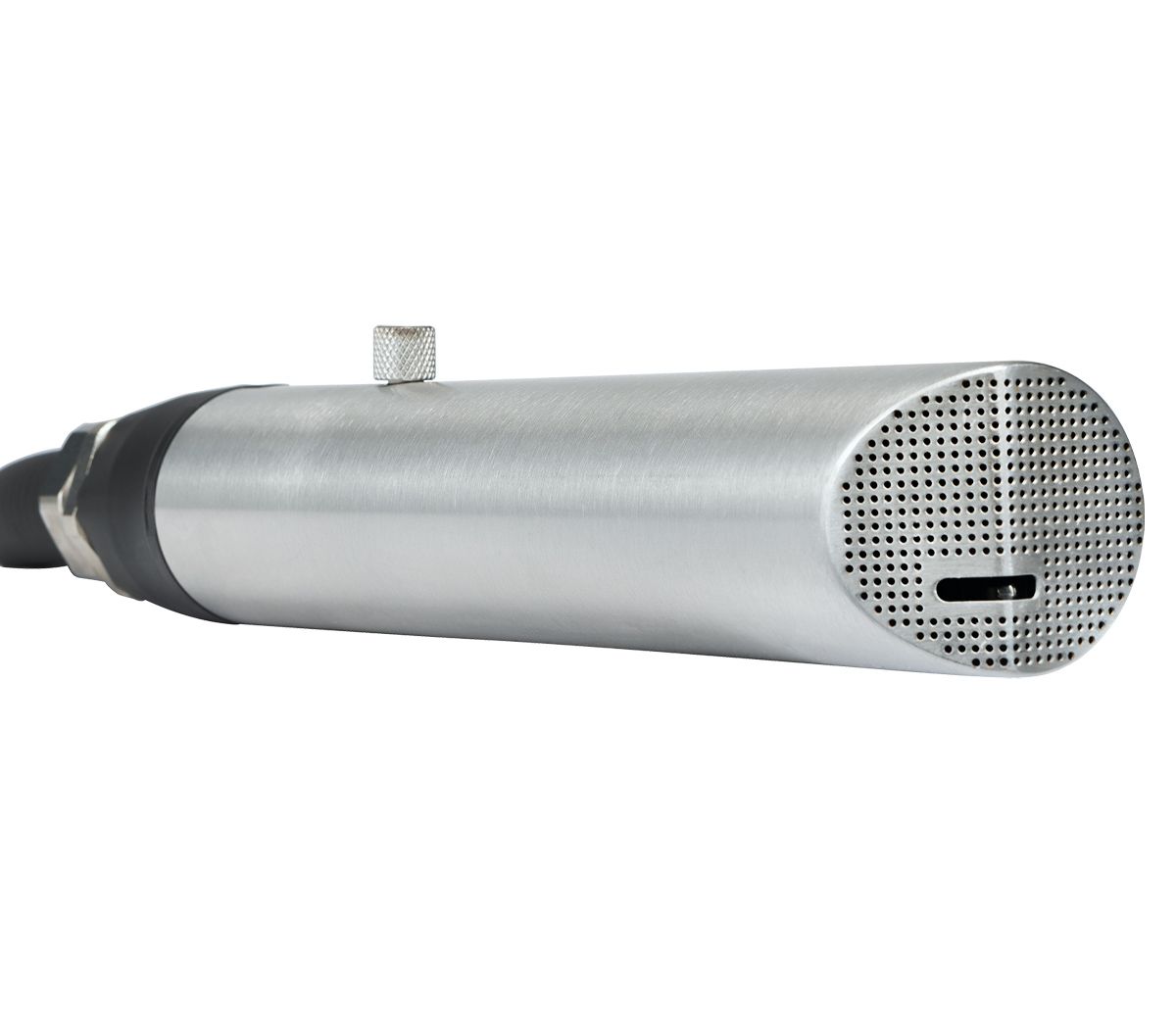

Diameter: 1.63” (41.3mm)
Length: 10.62” (269.8mm)
Ultra-flexible length: 9.84’ (3m) optional 19.69’ (6m)
Diameter: 0.91” (23mm)
Bend radius: 4.0” (101.6mm)
As low as 3.5ml per hour (MEK at 20°C)

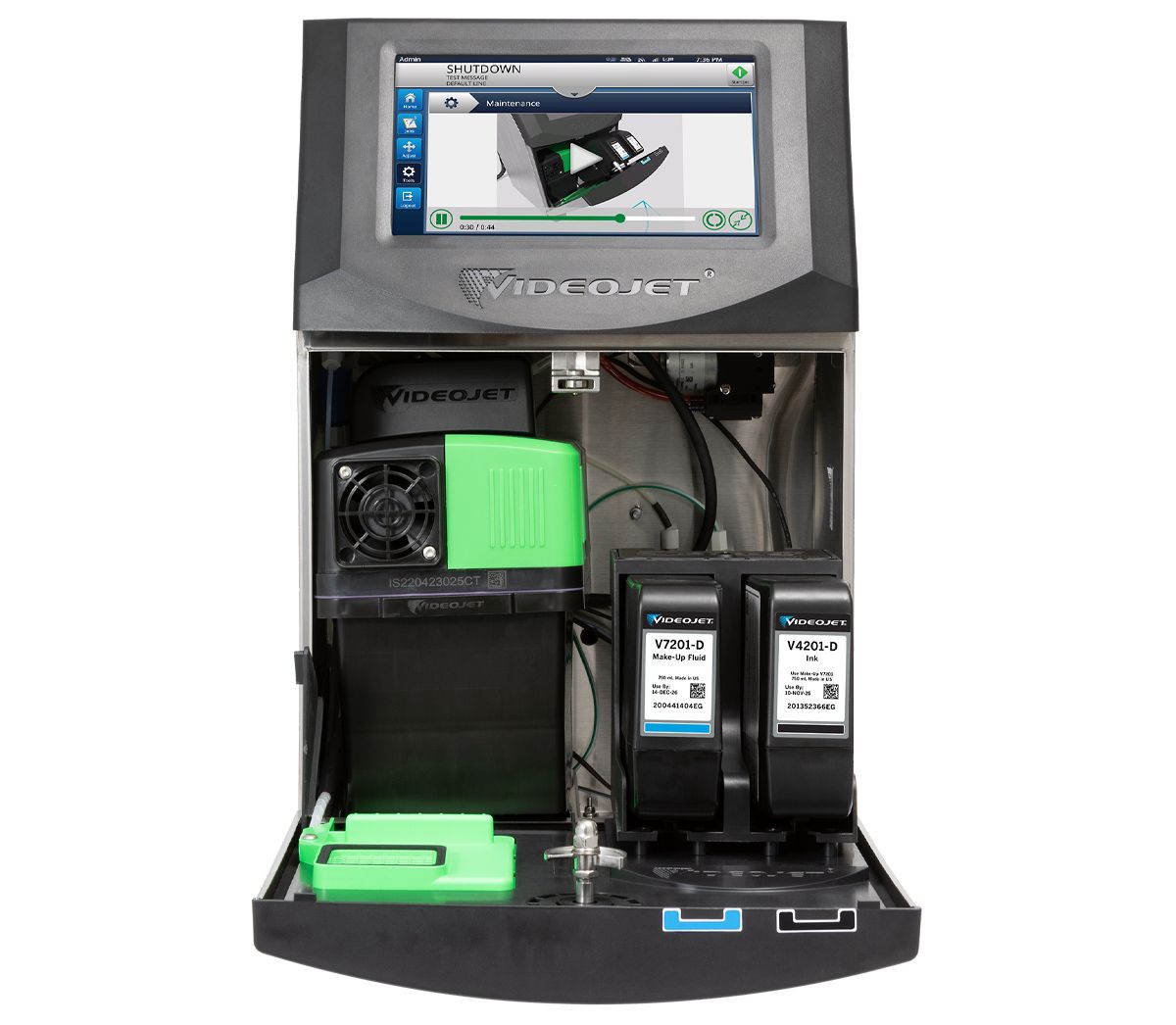

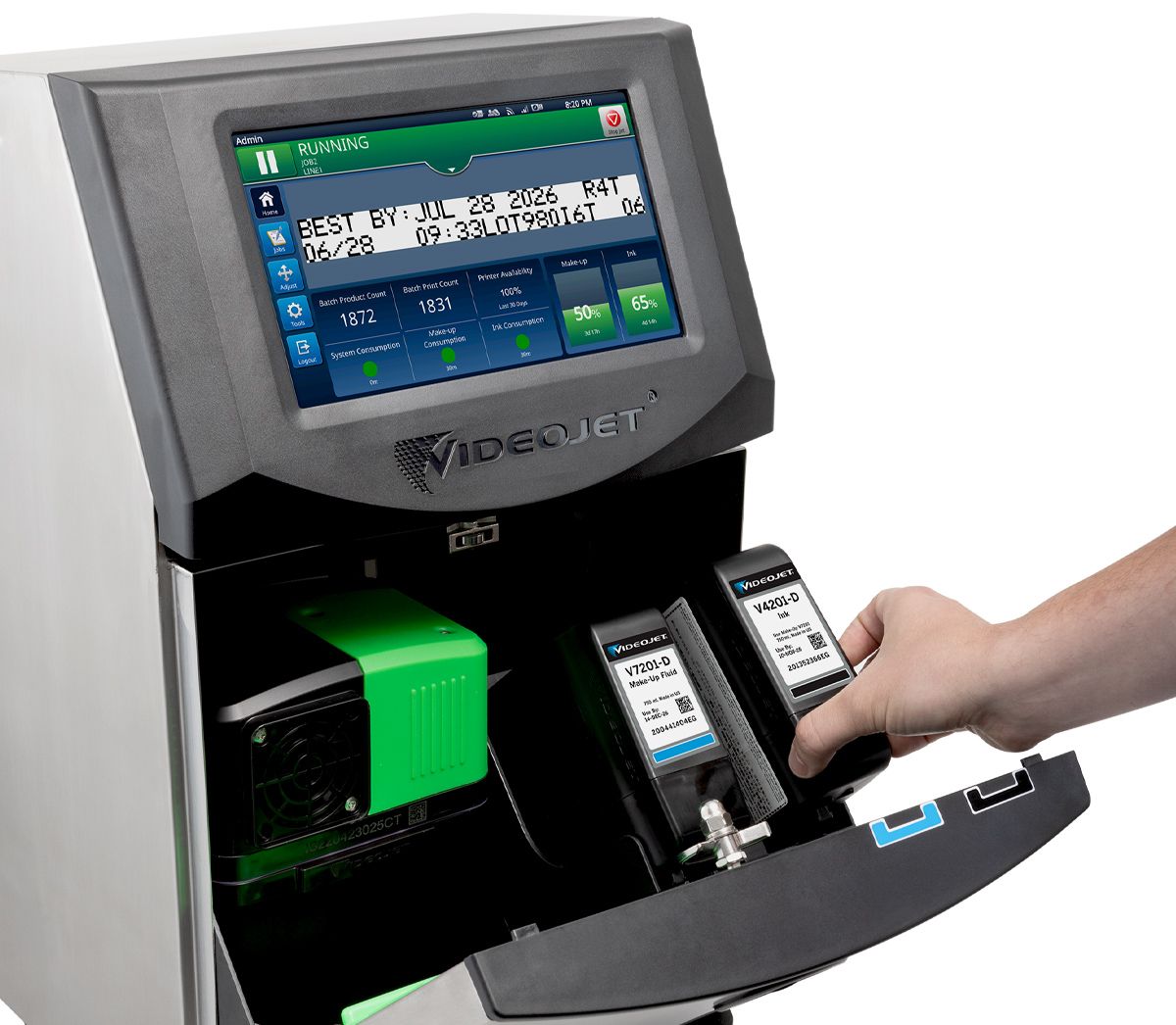

Ink and Make-up Smart CartridgeTM 1.06 qt (1000ml); optional 0.793 qt (750ml)
0°C to 50°C (32°F to 122°F)
0% to 90% RH non-condensing
With selected inks; actual installation may require additional hardware based on production environment conditions
Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 70W
Unpacked and dry: 46.3lbs. (21kg)
Dust protection kit with CleanFlowTM technology
Dry air kit for high humidity (requires plant air)
Cellular communication
RS232 connector kit (USB to Serial DIN-5 male adapter)
SIMPLICiTYTM Workflow Modules
Wide range of accessories
