| Specification | Value |
|---|---|
| Printheads | 1 |
| Inks | Dye Based |
| Maximum Lines of Print per Printhead | 5 |
| Maximum Line Speed(1) | 278 m/min (914 ft/min) |
| Environmental Protection | IP55 (Dust Kit IP65 #) |
| Umbilical Length | 3 m (9.8 ft) optional 6 m (19.6 ft) |
| Message Storage Capability | More than 250 complex messages |
| Smart Cartridge™ | Included |
| Plug and Play Printhead Modules | Included |
| USB | Included |
| Communications | Ethernet LAN™; Built-in Wi-Fi; optional Cellular connectivity |
| Linear and 2D Bar Codes | Included |
| Positive Air / CleanFlow™ | Optional |
| Display (User Interface) | SIMPLICiTY™ based 10 inch color touchscreen |
(1) Based upon single line, 10 characters per inch

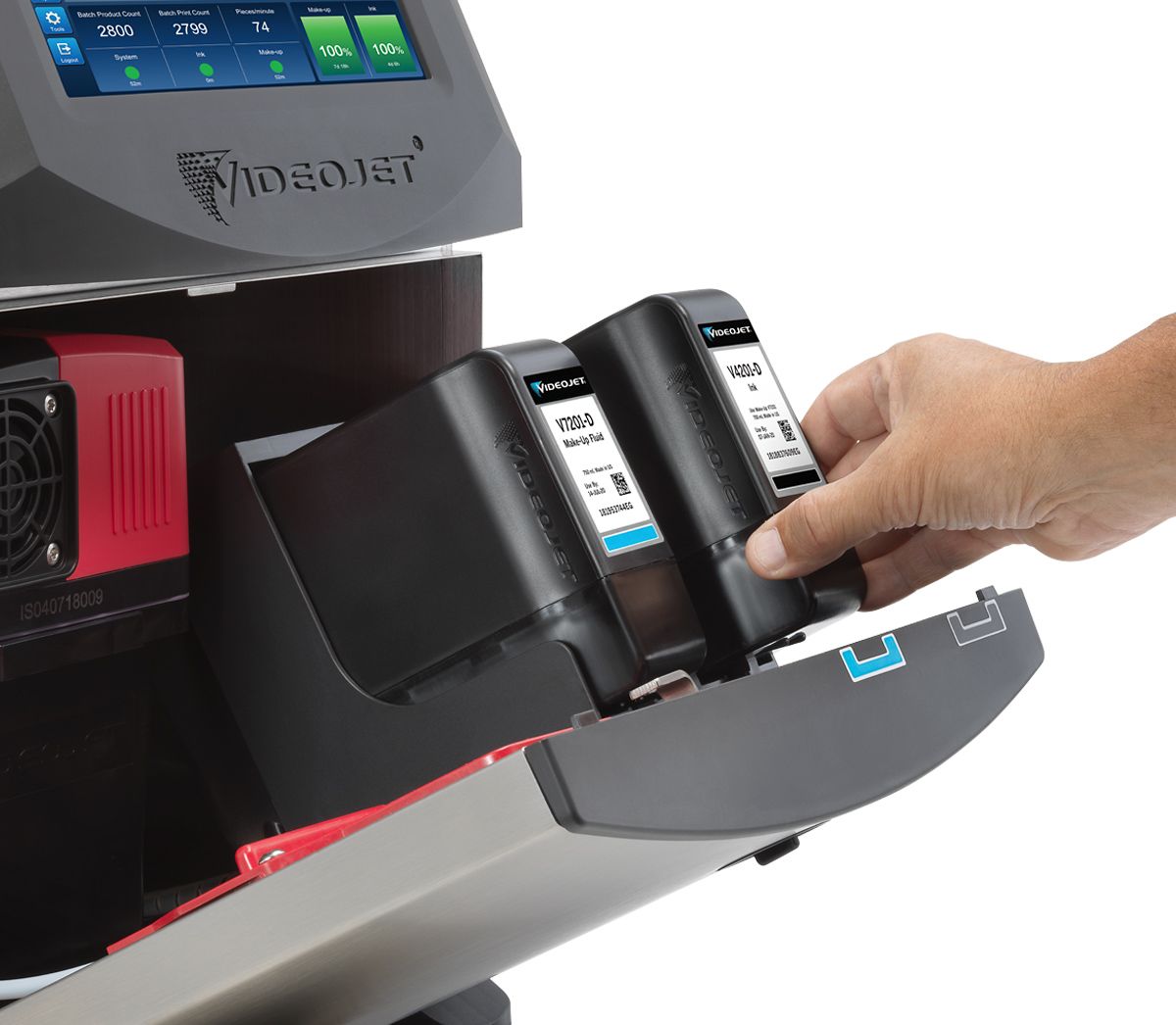

“When changing cartridges there is no mess and the display indicates when replacements are needed. This enables us to monitor levels so there are no excuses for staff not to change fluids and makeup at the right time.”
Paul Ash, Maintenance Technician, Britvic (case study)
“Across our 15 bakeries, we have 200 employees who interact with the printers on a daily basis. It is very important that each of them is comfortable operating the printers. With such an intuitive interface, it is easy for them to figure out how to use the printer.”
Anton de Leeuw, National Operations Manager, Sasko Bakeries (case study)
“The Videojet project team defined the exact requirements of our application prior to arriving on site for installation so we’d be in the best possible position for the new coding solution rollout.”
Jim Gerlach, Production Scheduler, Dutch Gold Honey (case study)
Can print 1 to 5 lines of print at speeds of up to 914fpm (278mpm) (10 characters per inch, single line of print)
Single-line: 5×5, 5×7, 7×9, 9×12, 10×16, 16×24, 25×34
Twin-line: 5×5, 5×7, 7×9, 9×12, 10×16
Tri-line: 5×5, 5×7, 7×9
Quad-line: 5×5, 5×7
Five-line: 5×5
UPC A&E; EAN 8 & 13; Code 128 A, B & C; UCC/EAN 128;
Code 39; Interleaved 2 of 5; GS1
21×21, 25×25, 29×29, 33×33
Error correction mode L, M, Q or H
10×10, 12×12, 14×14, 16×16, 8×18, 18×18, 20×20, 22×22, 24×24, 16×26, 26×26, 8×32, 32×32, 34×34, 12×36, 16×36, 16×48
Selectable from 0.079” (2mm) to 0.40” (10mm), depending on font
Optimal: 0.472” (12mm)
Range: 0.197” (5mm) to 0.591” (15mm)

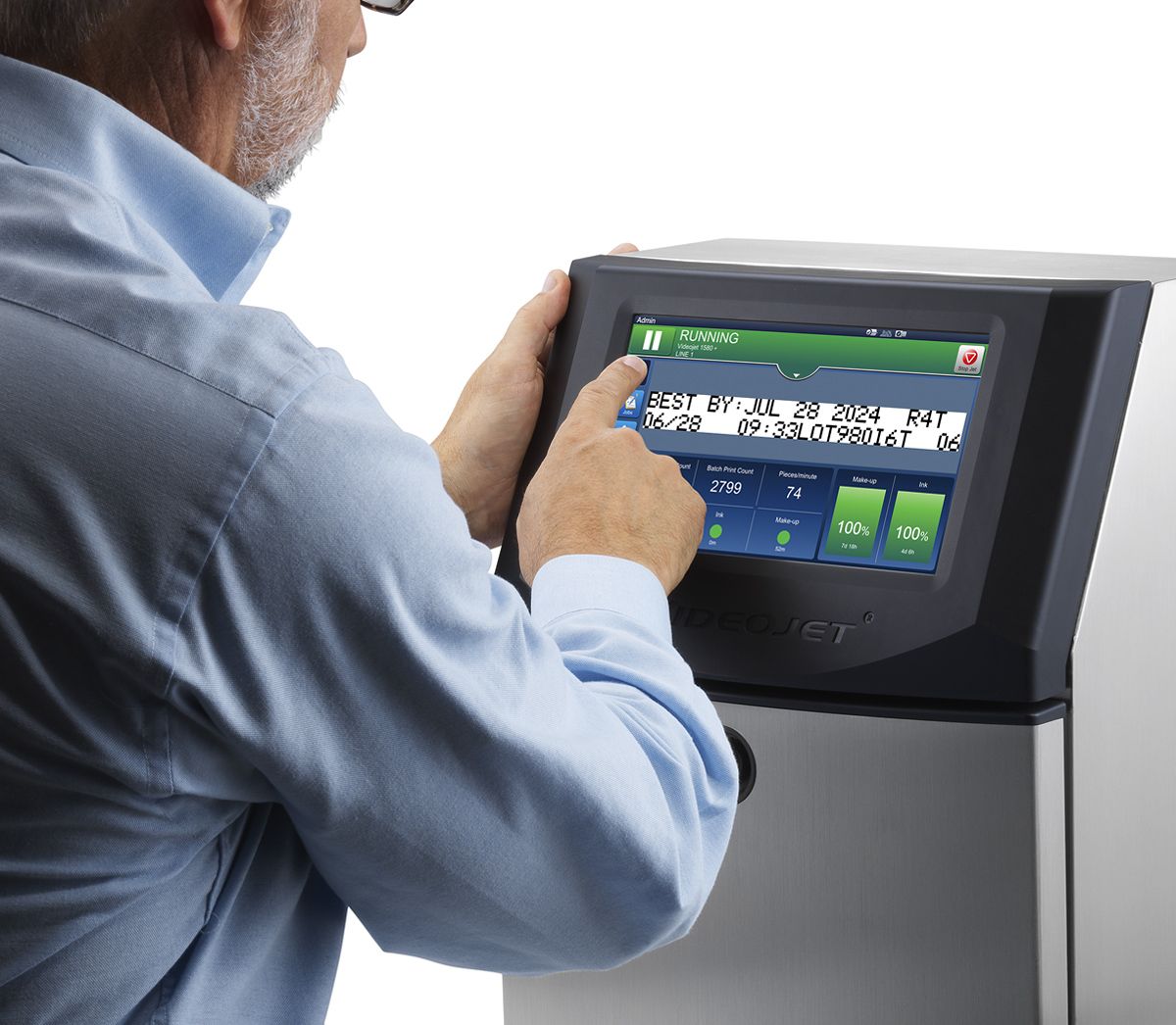

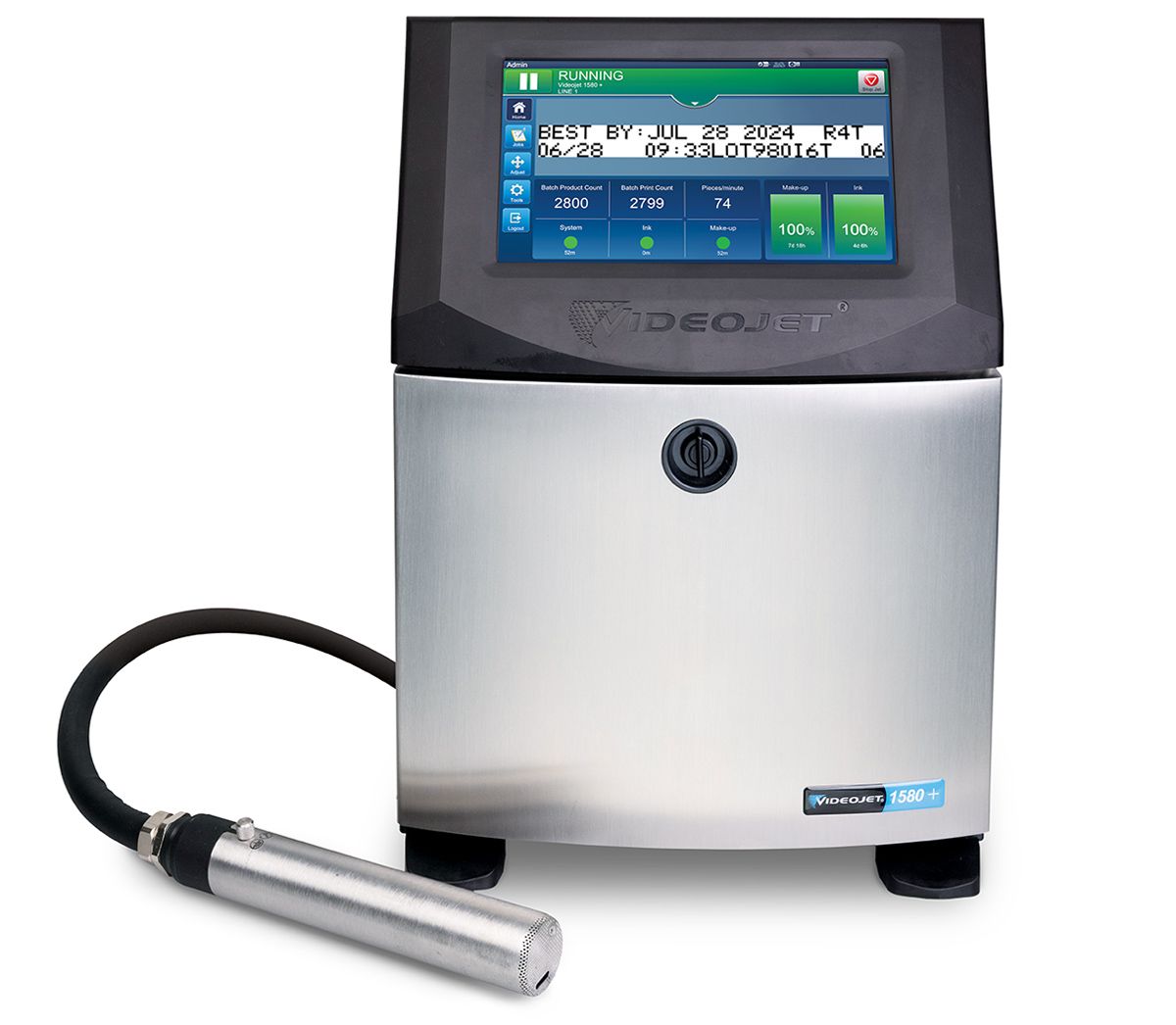

10.4” high-response TFT-LCD touch screen
WYSIWYG touch to edit message editing
Can be created via optional CLARiSOFTTM software*
Chinese, Russian/Bulgarian, Turkish/Scandinavian, Romanian, Greek, Arabic, Japanese/Kanji, Hebrew, Korean, East European and European/American
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Serbian, Simple Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish and Vietnamese
Product detect input
Encoder input
Beacon (Alarm light) output
Relay output
USB 2.0 (2x)
Ethernet LAN™
More than 250 complex messages

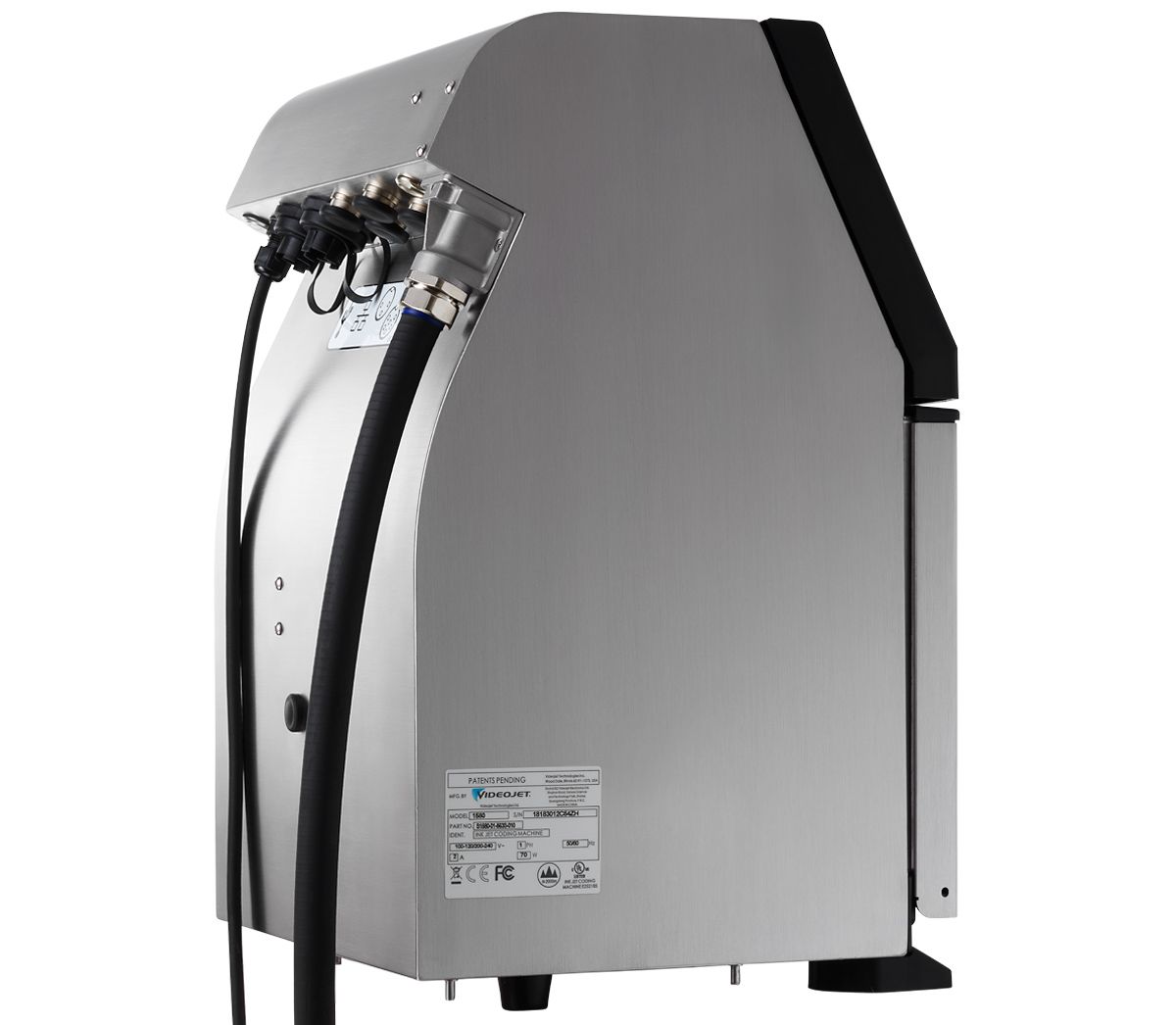

IP55 standard, no plant air required, stainless steel cabinet
IP65 protected electronics optiona
Heated printhead
CleanFlow™ including positive air, no plant air required (optional)
Diameter: 1.63” (41.3mm)
Length: 10.62” (269.8mm)
Ultra flexible
Length: 9.84’ (3m) optional 19.69’ (6m)
Diameter: 0.91” (23mm)
Bend radius: 4.0” (101.6mm)
5.0ml per hour (MEK at 20°C)

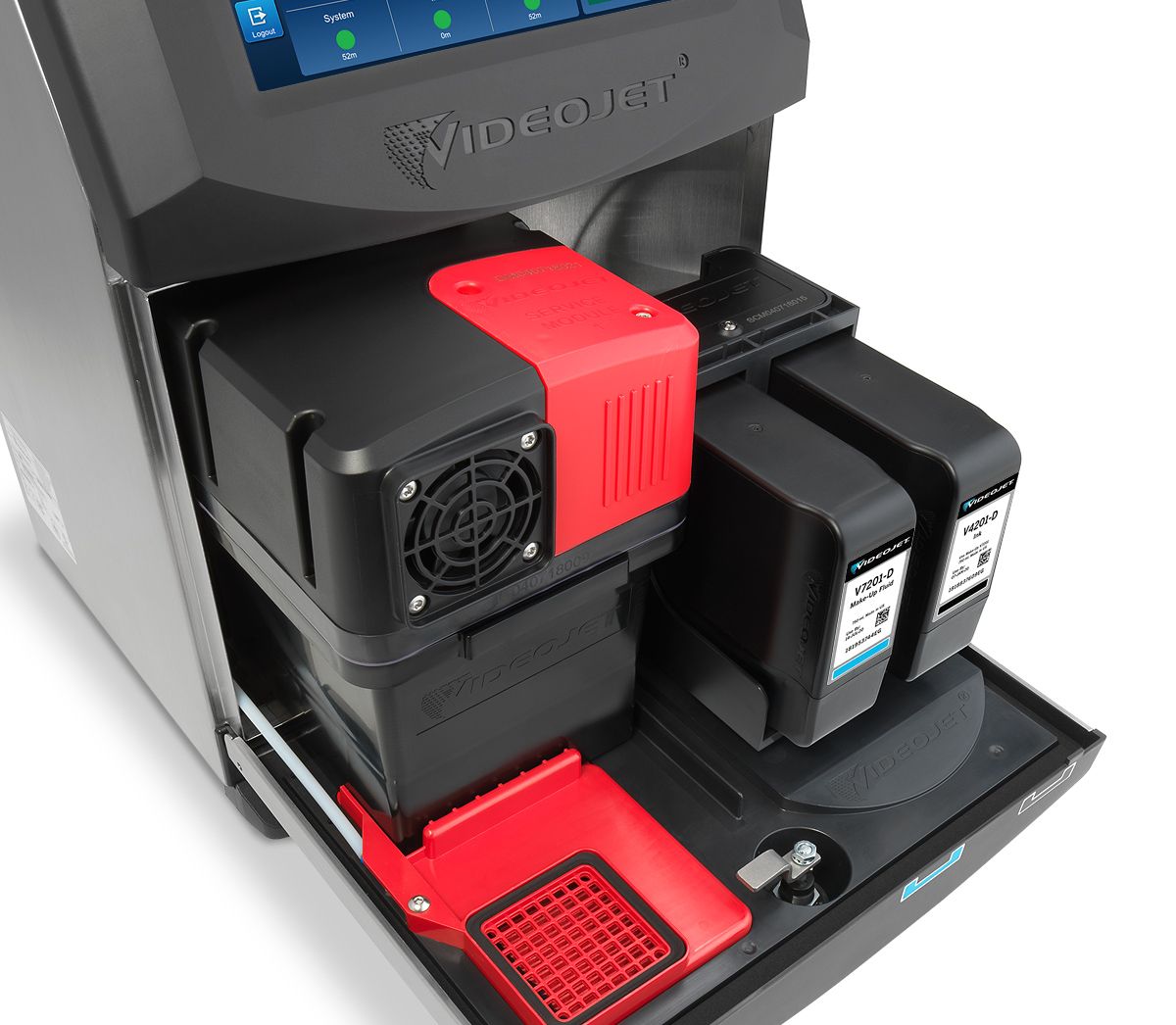

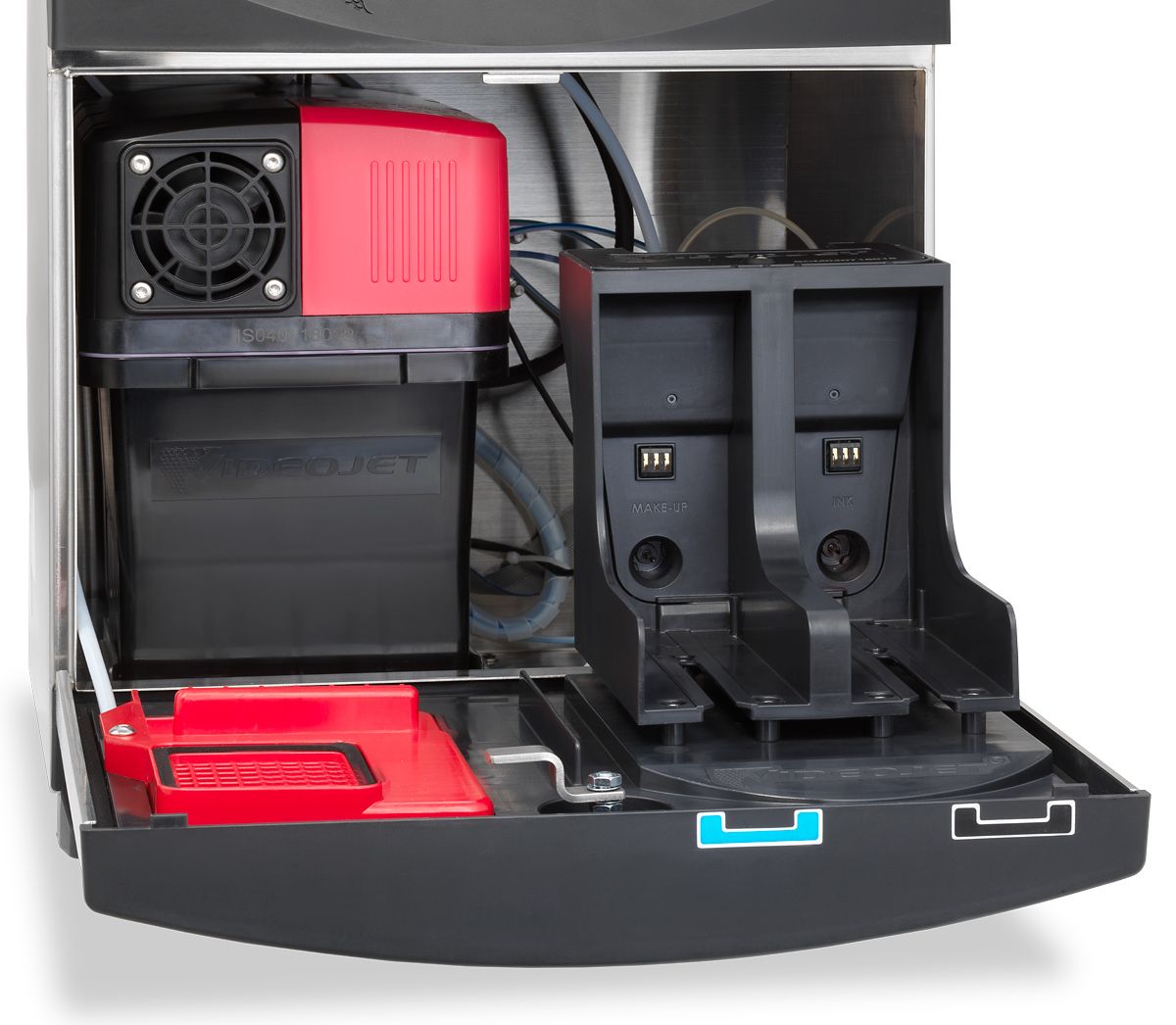

Ink and Make-up Smart Cartridge™ 0.793 qt. (750ml)
32°F to 122°F (0°C to 50°C)
0% to 90% RH non-condensing
With selected inks; actual installation may require additional hardware based on production environment conditions
Nominal supply power 100-120 / 200-240 VAC at 50/60 Hz., 70W
Unpacked and dry: 46.3lbs. (21kg)
Dust protection kit with CleanFlow™ technology
Dry air kit for high humidity (requires plant air)
RS232 connector kit (USB to Serial DIN-5 male adapter)
SIMPLICiTY™ Workflow Modules
Wide range of accessories
* CLARiSOFT Package Coding Design software required for bar codes and other advanced functionality.
