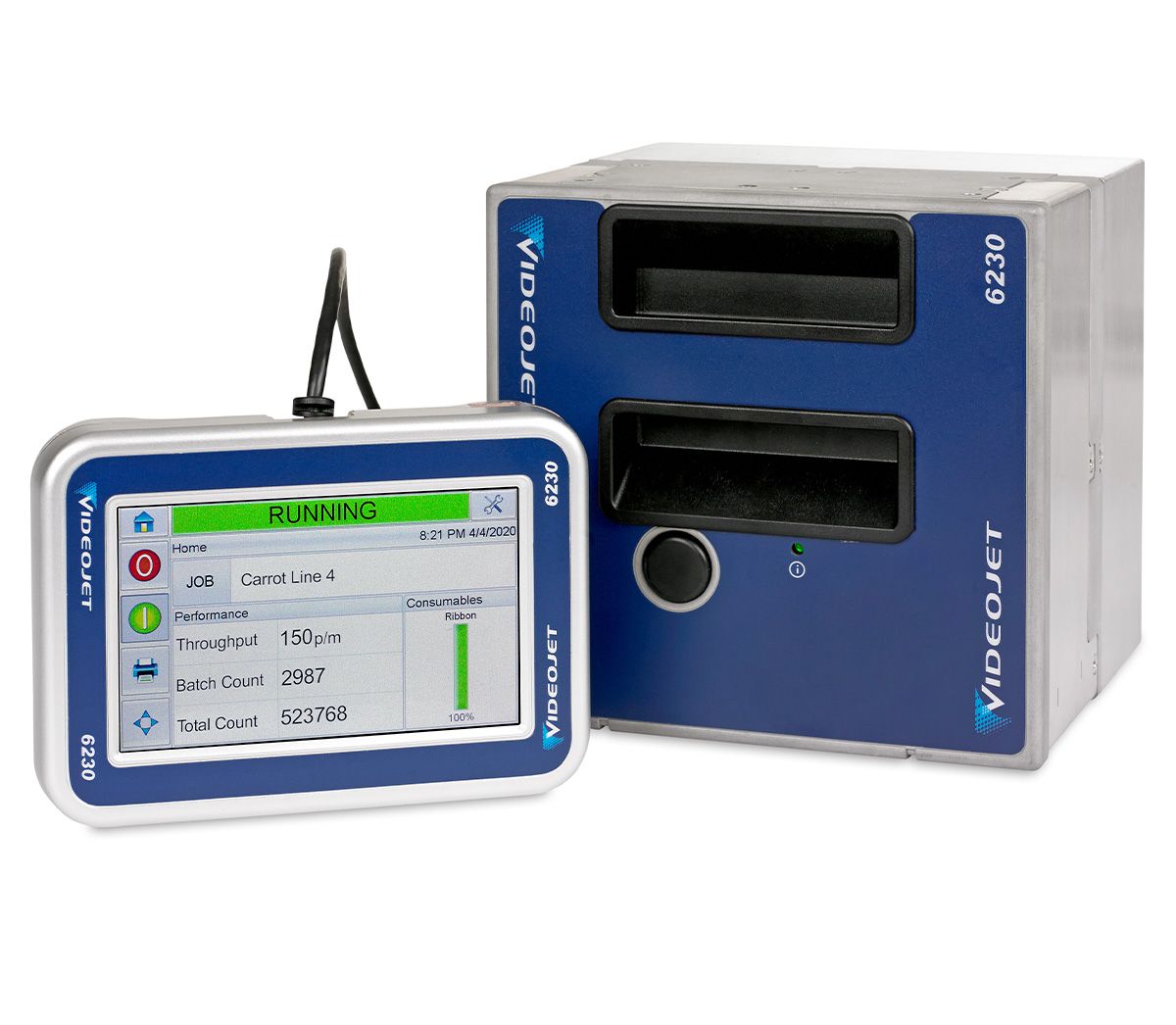

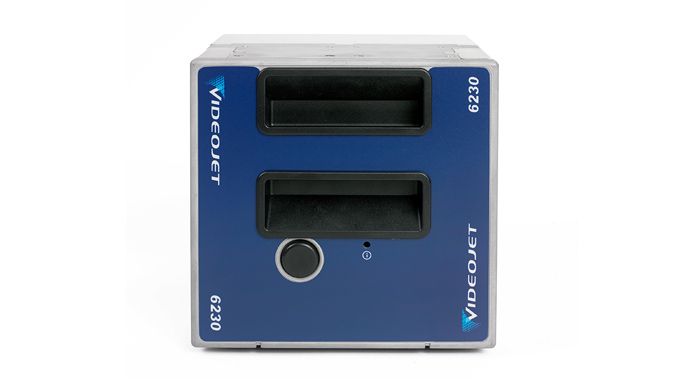

The Videojet 6230 is a low speed Thermal Transfer Printer that utilizes the latest technology to help reduce flexible packaging coding errors, and improve total cost of ownership (TCO) through a proven and cost-effective solution.
The 6230 Thermal Transfer Printer delivers easy usability with an intuitive tablet-like 5’’ touchscreen controller with CLARiTY™ interface. The simple ribbon path helps to ensure fast changeovers and a more efficient operation.
Code assurance comes as standard in the 6230 Thermal Transfer Printer when using templates created by CLARiSOFT™ or VideojetConnect Design software. These simple code creation tools help reduce operator interactions resulting in fewer user errors and unnecessary product waste and rework.
In addition to the features available, the 6230 offers high-quality codes up to speeds of 150 ppm and is an ideal solution for users migrating to a digital solution from analog equipment like hot stamp and roller coders.
Contact us for New Equipment Sales:
1300 02 02 04
| Specification | Value |
|---|---|
| Printer Mode | Intermittent and Continuous Motion |
| Print Gap | 0.5mm (0.020 in) |
| Maximum Ribbon Length | 700 meters max |
| Ribbon Widths | Min: 20mm (0.8 in) Max: 33mm (1.3 in) |
| Continuous Mode: | |
| Maximum Print Area (Width x Length) | 32mm x 100mm (1.26” x 3.93”) |
| Maximum Print Speed | 500mm/sec. (19.7 in/sec) |
| Minimum Print Speed | 40mm/sec.(1.6 in/sec) |
| Intermittent Mode: | |
| Maximum Print Area (Width x Length) | 32mm x 47mm (1.26” x 1.85”) |
| Maximum Print Speed | 300mm/sec. (11.8 in/sec) |
| Minimum Print Speed | 50mm/sec (2.0 in/sec) |
| Bar Code Printing | EAN8, EAN13, UPCA, UPCE and QR codes |
| Estimated Maximum Throughput (Single Line Code, Continuous Mode) | 150 packs/min |
| Standard User Interface | CLARiTY™ 5.0 inch color QVGA CSTN LCD and touch screen (800 x 480 pixels) |
| Master/Follower Capability (Up to 4 Printers Controlled by One User Interface) | Up to four Videojet 6230 printers controlled via a single CLARiTY™ control unit |
| Standard Communication | USB memory stick, ethernet, RS232, ASCII and binary communications |
“Using Videojet thermal transfer printing means operators have one less thing to be concerned about.”
Bob Epley – Packaging Maintenance Manager, Utz Quality Foods (case study)
“Videojet is rightly in a market-leading position with this device.”
Stefan Hertel Senior Project Manager, Zeppelin Systems (case study)
“That was one of the reasons why we decided on Videojet – because we need totally reliable printing including a very reliable printer with an extremely low failure rate.”
Stefan Hertel, Senior Project Manager, Zeppelin Systems (case study)
32mm, 200 dpi (8 dots/mm)
Continuous mode: Max. 32mm x 100mm (1.26” x 3.93”)
Intermittent mode: Max. 32mm x 47mm (1.26” x 1.85”)
Continuous & Intermittent modes in the same machine
Intermittent: 50mm/sec. to 300mm/sec. (2.0”/sec to 11.8”/sec)
Continuous: 40mm/sec. to 500mm/sec. (1.6”/sec to 19.7”/sec)
5.0” Colour QVGA CSTN LCD and touch screen (800 x 480 pixels)
WYSIWYG print preview
On-board diagnostics
3 levels of password protection
Multiple language support
Solid-state, clutchless bidirectional ribbon drive, including
Full downloadable font support using Windows® TrueType® fonts
Fixed and variable text and numeric data
User entered text and numeric data (including Chinese)
Flexible date / time formats (based on internal real-time clock)
Auto best before date calculations
Flexible shift code formats
EAN8, EAN13, UPCA, UPCE and QR codes
700 metres (766 yds.) maximum, available in a variety of grades and colours
0.8” (20mm) min, 1.3” (33mm) max
Design
Storage
Message upload
CLARiNETTM
CLARiTYTM Configuration Manager (included)
USB memory stick, ethernet, RS232, ASCII and binary communications
Print Go
Inhibit Print
Encoder (single phase or quadrature)
Fault
Warning
Busy
Printing
Up to four Videojet 6230 printers controlled via a single CLARiTYTM control unit
100-240 VAC, 50/60Hz, 24V (120W) 5A
0°C – 40°C (32°F – 104°F)
