| Specification | Value |
|---|---|

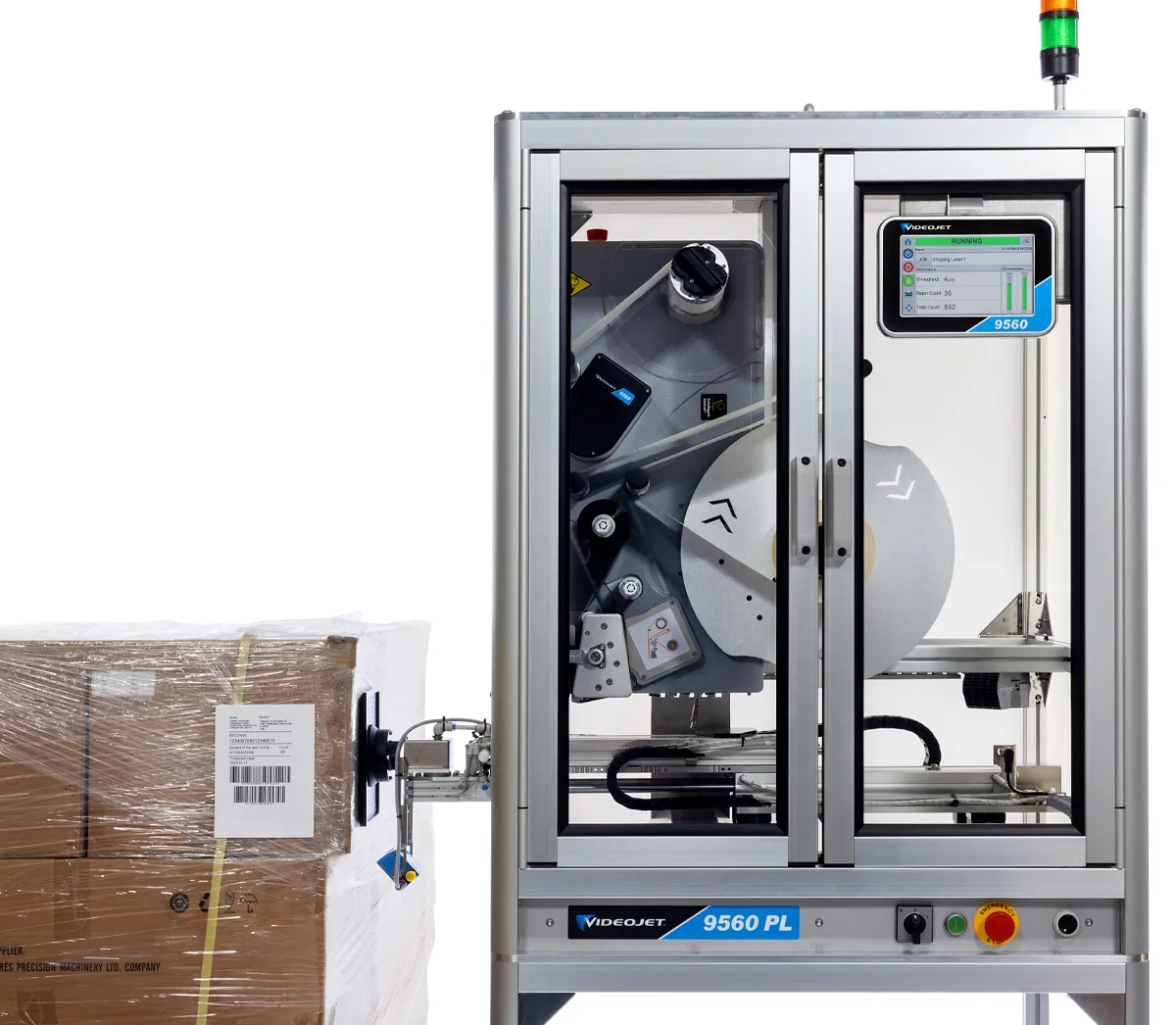

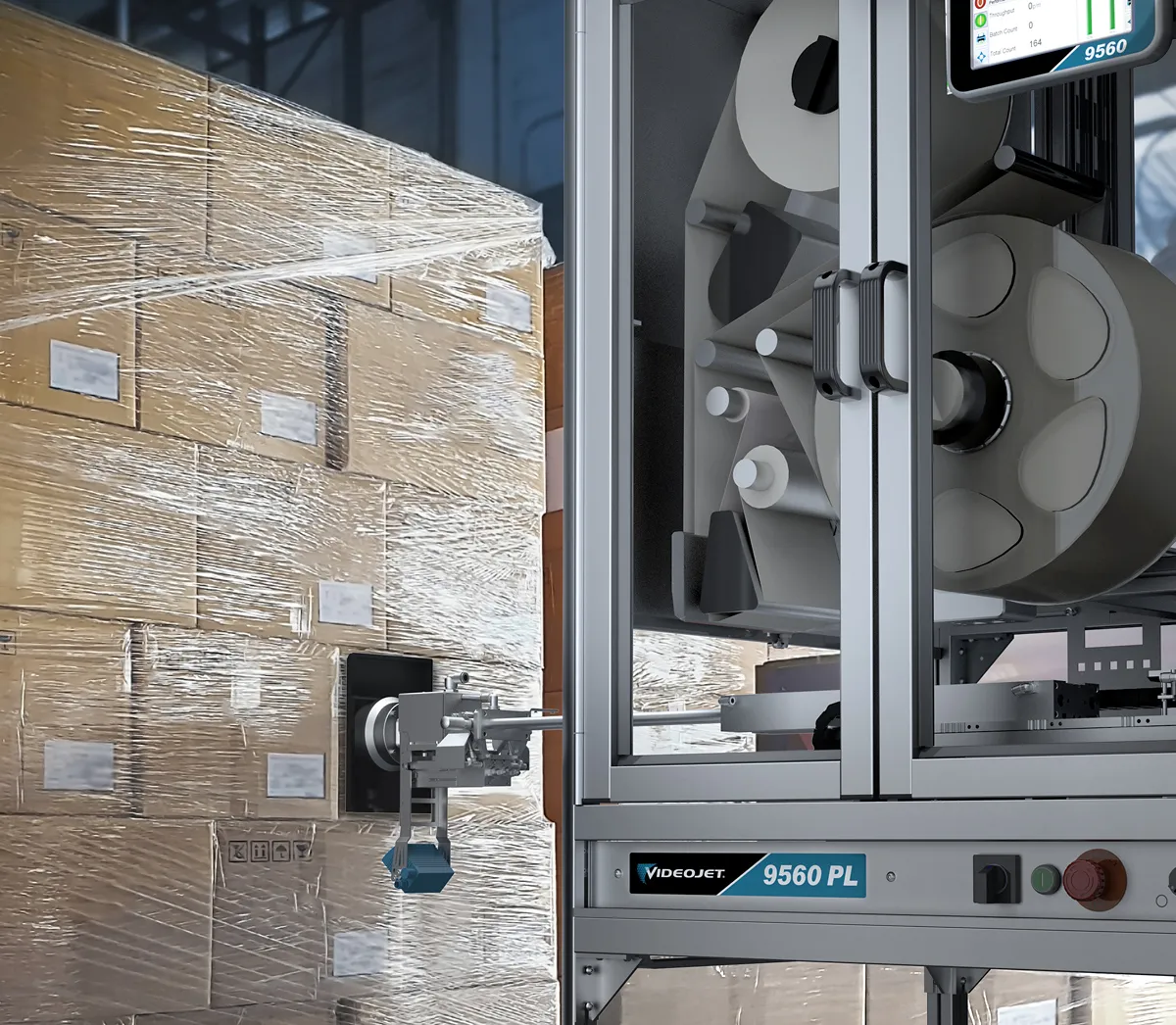

| Label Application Method | Telescopic tamp |
| Print Technology |
Thermal transfer printing with Intelligent MotionTM Ribbon Drive and Direct Thermal 160mm printhead |
| Ribbon |
Width: 5.9 – 6.5” (150 – 165mm) Capacity: Up to 500m, including automatic ribbon save (< 1mm ribbon gap between successive prints irrespective of label size or speed) |
| Print Resolution | 300dpi (200dpi in emulation mode) |
| Print Speed | Up to 15.7in/sec (400mm/sec); speed is dependent on the application |
| Throughput | Up to 120 pallets per hour, based on two labels per pallet |
| Emulations | Zebra (ZPL), Sato (SBPL) and Markem-Imaje (Cimcomms) protocol support |
| Label Width/Length/Capacity |
Width/length: 5.9 to 6 .9” / 4.0 to 8.3” (150 to 175mm / 100 to 210mm); A5/A6 Capacity: Up to 330mm spool diameter |
| Interface | CLARiTYTM Controller with interactive on-board video tutorials |
| Connectivity |
Ethernet, Power-over-Ethernet, Configurable I/O (24V, PNP and volt free); 8 inputs and 6 outputs USB (for backup/restore and label upload), remote Control Videojet 9560 PL via a web browser |
| Certification | CE, TÜV |
*Subject to availability in your country

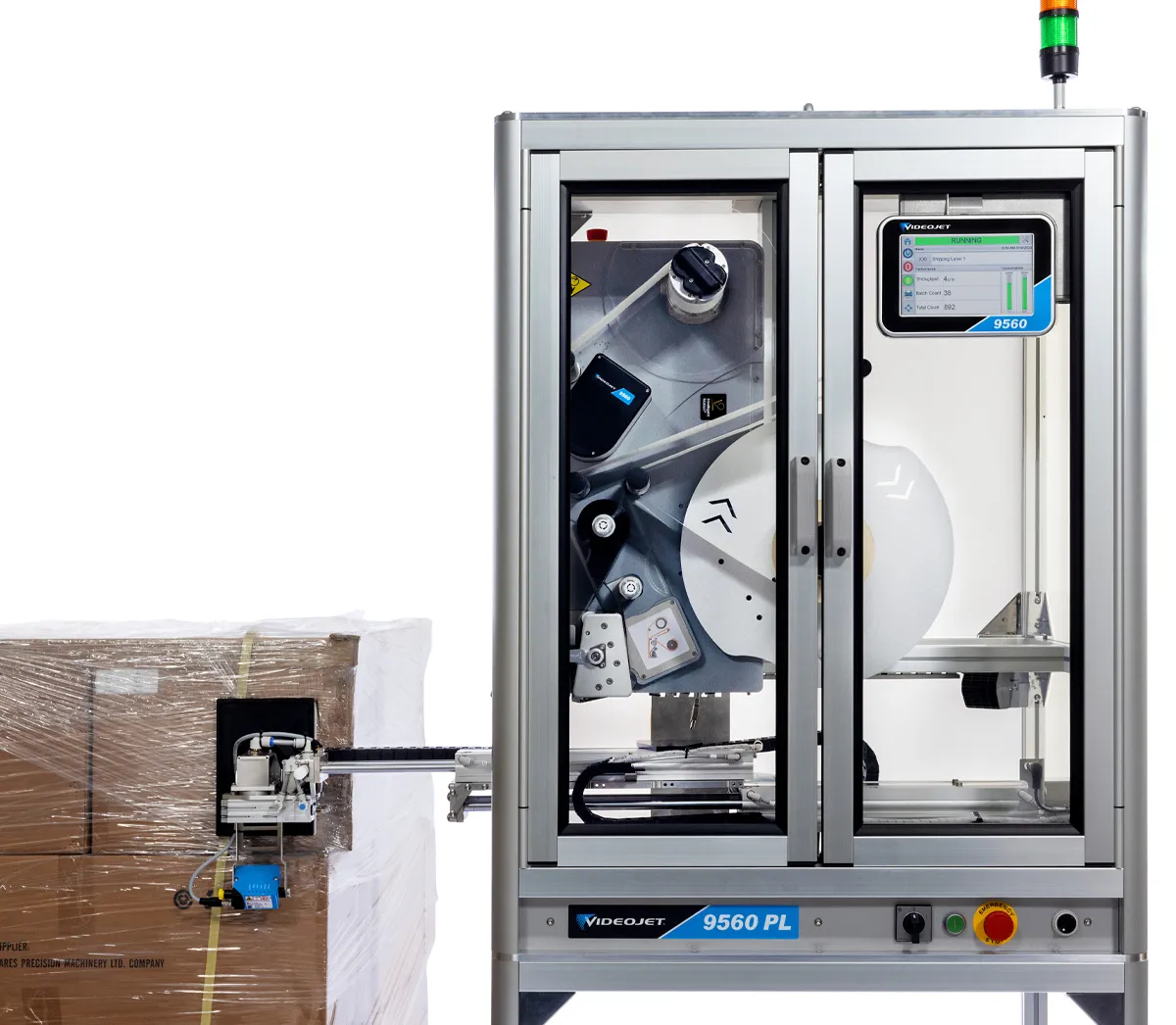

Telescopic tamp
Thermal transfer printing with Intelligent MotionTM Ribbon Drive and Direct Thermal 160mm printhead
300dpi / 200dpi emulation mode
Tool-free quick-release printhead replacement
Up to 15.7in/sec (400mm/sec)
Speed is dependent on the application
Up to 120 pallets per hour, based on two labels per pallet
Width: 5.9 – 6.5” (150 – 165mm)
Capacity: Up to 500m, including automatic ribbon save (< 1mm ribbon gap between successive prints irrespective of label size or speed)
Low Ribbon and End of Ribbon detection with predicted changeover time built in as standard
Width/length: 5.9 to 6 .9” / 4.0 to 8.3” (150 to 175mm / 100 to 210mm); A5/A6 Capacity: Up to 330mm spool diameter
Low Labels and End of Label Reel detection, with predicted changeover time built in as standard
Automatic adjustment for label/backing type and label size
400MB on-board label database, sufficient for 25,000 typical GS1 bar code label designs
Full downloadable font support using TrueType® fonts (including multiple languages and Unicode support); fixed, variable and merged text fields; flexible date/time formats; flexible shift code formats; auto best before date calculations and concession management; calendar rules; auto incrementing decrementing text, counters and bar codes; multiple graphic formats supported (up to maximum print area); link fields to databases; scalable text and text blocks

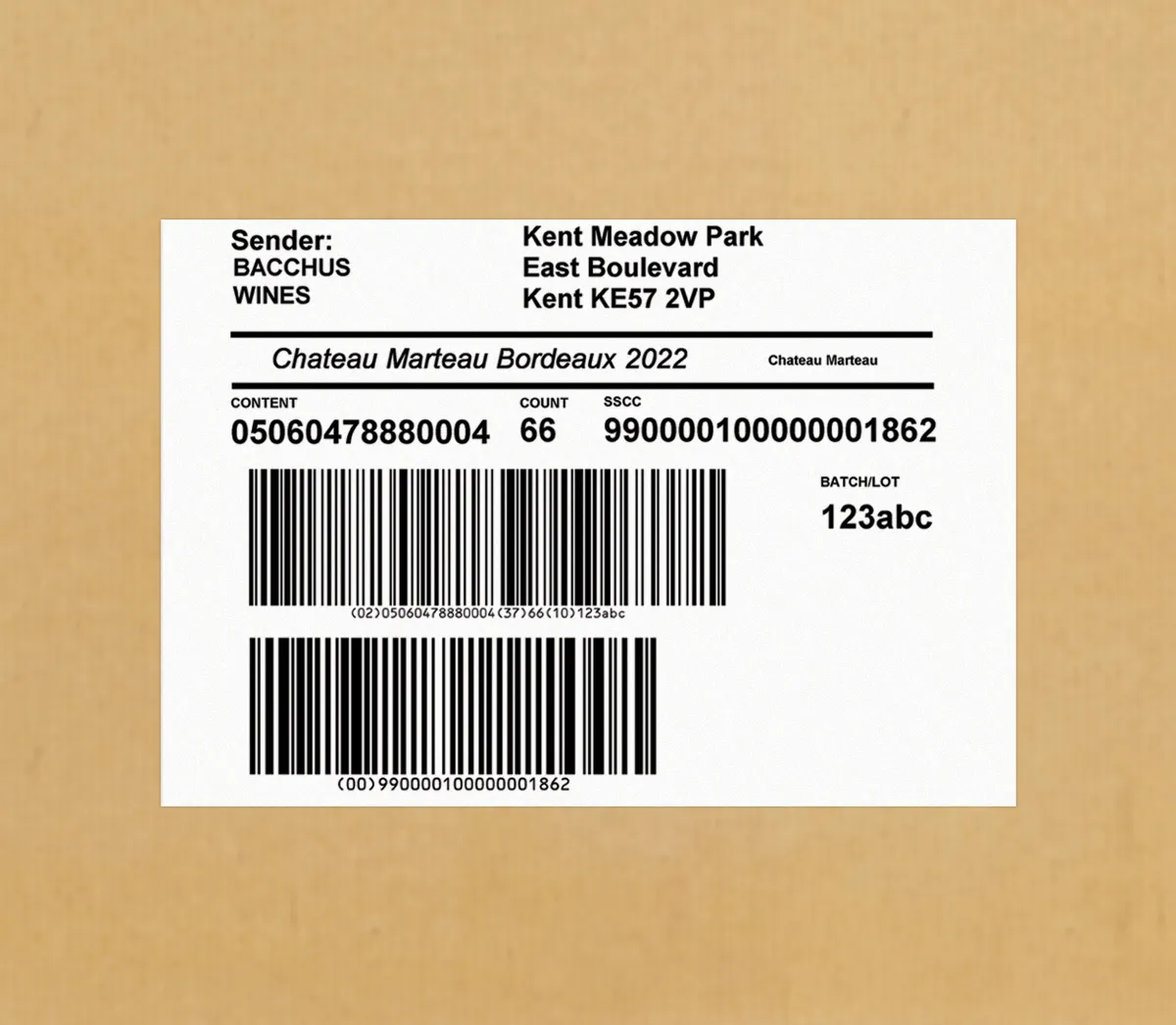

EAN 8, EAN 13, UPC-A, UPC-E, Code 39, GS1-128, Code 128, ITF, RSS (including 2D composite codes); others available upon request
Ethernet, Power-over-Ethernet, Configurable I/O (24V, PNP and volt free); 8 inputs and 6 outputs
USB (for backup/restore and label upload), remote Control Videojet 9560 PL via a web browser
Compatible with Videojet CLARiSUITE®
Videojet binary and simple-ASCII protocols
Compatible with any label design software that supports Zebra or Sato print engines
Zebra (ZPL), Sato (SBPL) and Markem-Imaje (Cimcomms) protocol support
EtherNet/IPTM
PROFINET®

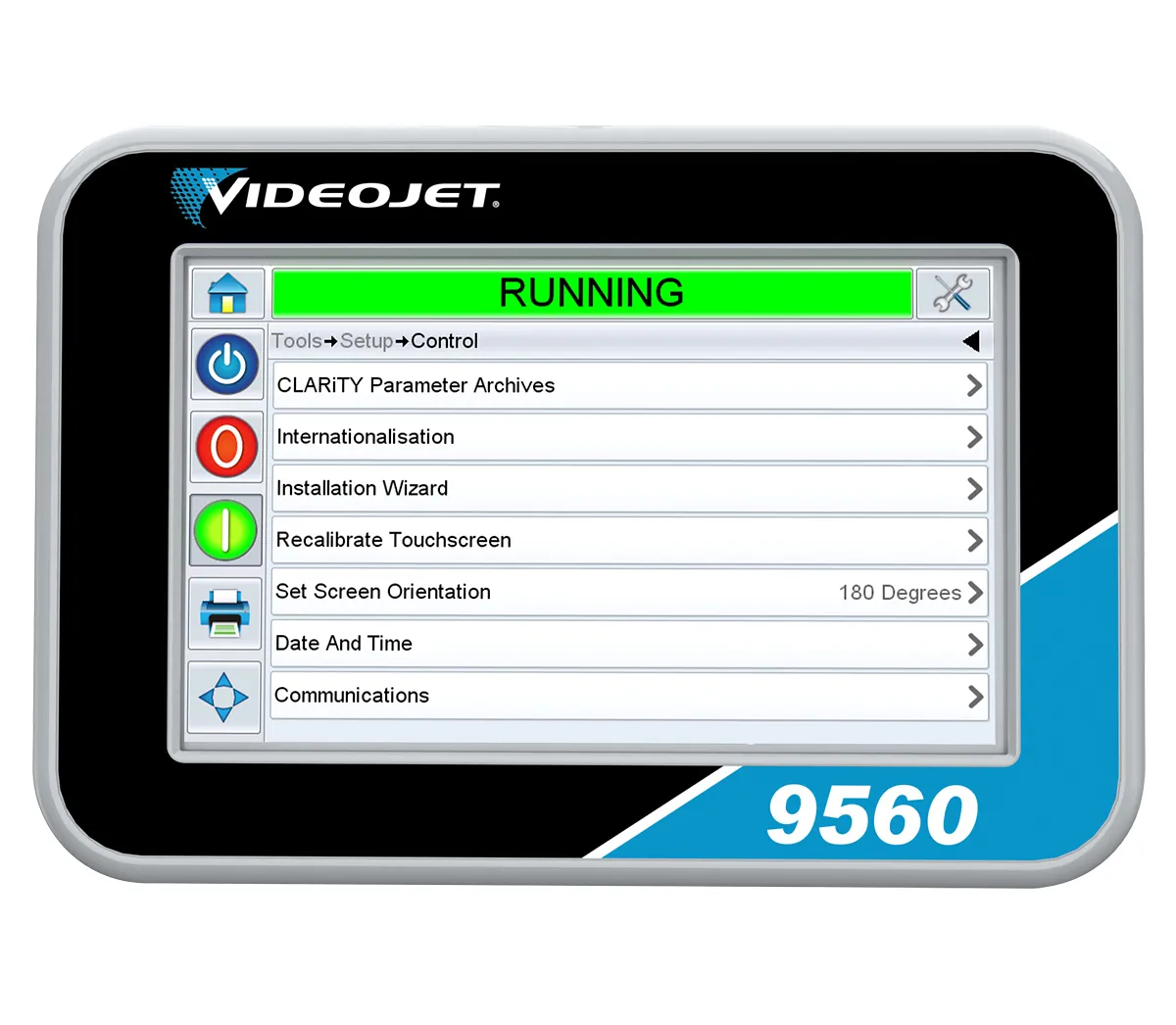

CLARiTYTM Controller with interactive on-board video tutorials
TFT SVGA 800×480 full-colour LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, three levels of password protection, extensive language support
Arabic, Bulgarian, Czech, Danish, English, German, Greek, Finnish, French, Hebrew, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Spanish, Swedish, Thai, Turkish, Vietnamese
3L air/label or 6L air/pallet (2 labels/pallet)
Operating air pressure: 4 bar (58 psi, 400 kPa)
100 – 240VAC
Temperature Range: 5 – 40°C (41 – 104°F); -5 – 40°C (23 – 104°F) with heater
Humidity: 20 – 85% Relative, non-condensing
200kg (441lbs) (max, including ribbon and labels)
CE, TUV
